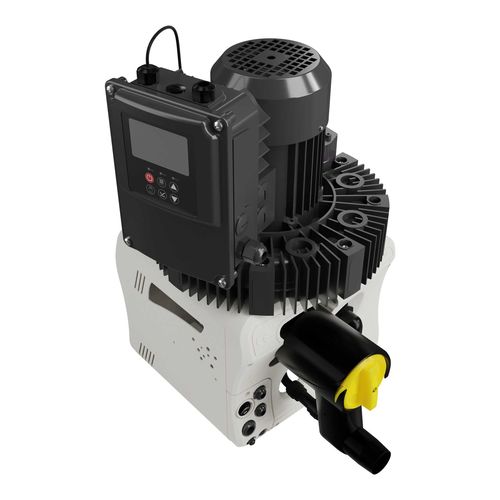

Electric surgical suction pump SW-Mi3000
dentalfixed

electric surgical suction pump
electric surgical suction pump
Add to favorites
Compare this product


Characteristics

Operation
electric
Applications
dental
Configuration
fixed
Flow

Min.: 11 l/min (2.91 us gal/min)

Max.: 13 l/min (3.43 us gal/min)

Power

0.9 kW (1.22 hp)

Pressure

Min.: 140 mbar (2.03 psi)

Max.: 270 mbar (3.92 psi)

Height

46 cm (18.1 in)

Width

56 cm (22 in)

Length

33 cm (13 in)

Description

SW SERIES SEMI-WET SUCTION SYSTEMS 230V - 50/60Hz SW-Mi3000 SEMI-WET SUCTION SYSTEM users: 1 - 3 Made in Italy 3-year warranty 50% energy-saving electronic PLC to control rpm, current consumption, working hours, vacuum indicator does not require water supply air / liquid separation unit automatic drain valve variable frequency drive (1800 - 3200 rpm) predisposed for Industry 4.0 connection Wi-Fi connection and remote control interface via software/app 230V - 50/60Hz 0,90 - 1,10 kW (1,21 - 1,48 hp) 6,2 - 7,4 A nominal current 2900 - 3440 rpm 140 - 270 mbars max vacuum 11 - 13 L/min max liquid inlet 32 mm suction inlet (internal) 19 mm waste outlet (internal) 38 mm mm exhaust air hose (internal) 55 dB(A) can be fitted with amalgam separator (see below)​ available in other voltages and frequenciesFOR YOUR PRACTICE ZERO COMPROMISES. CLINIC AIR offers a phenomenal selection of compressed air products designed specifically for applications that require the absence of oil and that are sensitive to noise. The SMART and CLINIC SERIES consist of high-performance, oil-free, piston compressors. Along with the SW SERIES of surgical suctions, they are heavily demanded in dental and medical practices where clean air is critical for the safety and comfort of the patient. The SCROLL SERIES (spiral compression technology) thanks to its IE3 motors and a nominal power range of 2,2 to 7,5 kW opens a new world of functionalities in food and beverage, pharmaceutical, and medical centers.

Catalogs
