Telehealth display

VGA27"15.6"

Product name

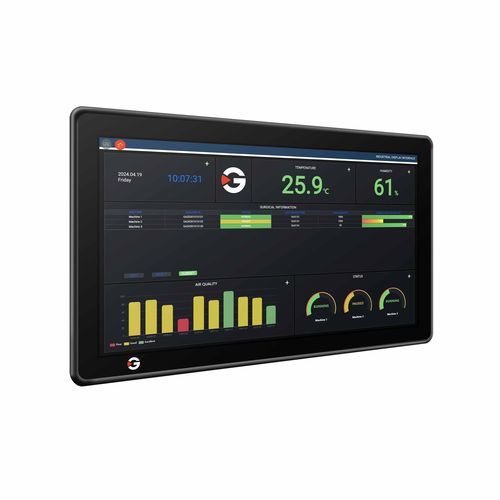

Industrial touch monitor MT Series — available in 15.6 to 27.0 inch full-view sizes.

Advantages

• 15.6–27.0 inch full-view high-quality display
• IP65 front protection
• VESA mounting
• PCAP multi-touch (resistive on request)
• Metal enclosure (aluminium / SECC; stainless steel optional)
• 2 years warranty

Specification of the Monitor - General

• Touch: PCAP multi-touch (resistive on request)
• Bonding: Air bonding (DSM), Optical bonding (MDM)
• Housing material: Aluminium / SECC metal (stainless steel optional)
• Mounting: VESA 75 x 75 / 100 x 100, panel mount
• USB ports: For PCAP touch
• Display interfaces: DSM: HDMI / VGA / DVI; DMM: HDMI / DP / VGA / DVI
• Sound: Phone jack (built-in speaker on request)
• Waterproof: IP65 (front)
• Standard conformity: CE, FCC, RoHS, REACH, TSCA, POPs, CA65, IEC60601-1-2, EN55011, EN61000-4-2/4, EN301489-1-17, IEC62311, IEC62368-1, IEC60068-2-271, IEC60068-2-64
• Glass surface treatment: AG (AF / AR on request)
• Power input: DC Jack 12V

Other

• Accessories: Power adaptor (Input 100~240V AC, Output 12V DC), USB cable, HDMI cable
• Warranty: 2 Year

Application areas

• Artificial intelligence
• Industrial automation
• Smart healthcare
• Business intelligence terminals

Technical specifications

• Display sizes supported: 15.6 to 27.0 inches (full view)
• Front protection rating: IP65
• Touch technology: PCAP multi-touch (resistive option available)
• Mounting options: VESA 75x75, 100x100, panel mount
• Housing: Aluminium / SECC metal; stainless steel optional
• Display interfaces: HDMI, VGA, DVI, DP (depending on configuration)
• Power: DC Jack 12V (accessory power adapter: 100~240V AC to 12V DC)
• Optional features: Optical bonding, anti-glare / anti-fingerprint / anti-reflective glass treatments, built-in speaker on request
• Standards & conformity: CE, FCC, RoHS, REACH, TSCA, POPs, CA65, IEC/EN standards as listed above
