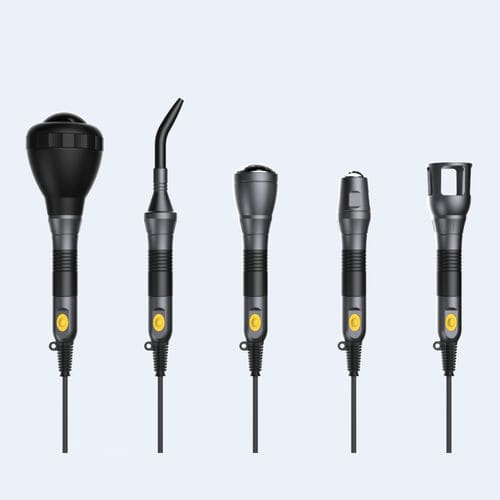

The PM5 Series handpiece comes with up to 5 lenses.
Multiple sets of lenses work together to meet your different clinical function applications.
Hand Piece with Finger Switch
Large Rolling Ball (30mm in diameter)
This treatment head is for use in muscular or deep soft tissue injuries and should be perpendicular to the skin, not approaching at an angle, it could be pressed for a muscular 360° massage. The Large Ball can be used at power settings up to 26W.
Medium Ball (30mm in diameter)
This treatment head is for use in muscular or deep soft tissue injuries in tight spaces or near sensitive areas, this medium ball is not recommended for use over bone, open wounds, non-intact skin, or areas that would be sensitive to contact. The medium ball head is recommended for most laser contact treatments. The Medium Ball can be used at power settings up to 26W.
Small Ball (10mm in diameter)
This treatment head is for use in muscular or deep soft tissue injuries in tight spaces or near sensitive areas, this small ball is not recommended for use over bone, open wounds, non-intact skin, or areas that would be sensitive to contact. The Medium Ball can be used at power settings up to 15W.
Non-contact Cone (30mm in diameter)
This treatment head is for general use and applications where no contact or soft tissue manipulation during treatment is desired. The Non-contact Cone can be used at power settings up to 26W.
Bended Head (5mm in diameter)
This treatment head is for laser acupuncture which is not suitable for perpendicular treating.
The Bended Head can be used at power settings up to 8W.
