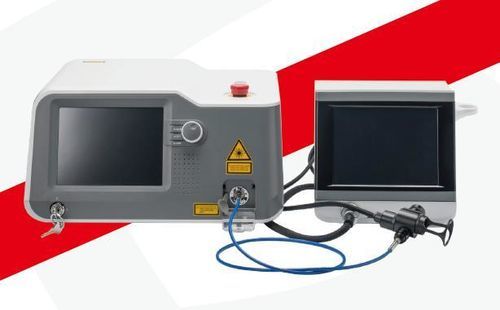

Vascular lesion treatment laser VELASII-8G

pigmented lesion treatmentscar removallithium triborate

INTRODUCTION
Use high power semiconductor at 808nm to “pump” in an optical sense a crystal that produces light of a wavelength of 1064 nm. Such light is in turn cast upon a duplicating crystal (LBO - triborate lithium) to halve the wavelength of 1064 nm and obtain green light of 532 nm. This system of splitting the wavelength allows the operator to control the exit of green light using very short pulses.

Powerful and effective

• 3w / 4w / 5w / 8w peak power options
• Very short, intense pulses
• Effective treatments with protection of the epidermis
• Very stable and reliable with long lifetime

Transportable and economic

• Easy-to-use design with intuitive menu
• Compact device with stable technology
• Transportation case for device and accessories
• Plug & play technology: no technician needed
• Low operating costs

Applications
Vascular Lesions

• Spider Veins
• Telangiectasia
• Neovascularization
• Rosacea
• Venous Lake
• PWS
• Senile, Stellate and Cherry Angiomas

Pigmented Lesions

• Lentigines
• Dermatosis Papulosis Nigra
• Freckles
• Hyperkeratotic Lesions
• Civette Poikiloderma
• Red Stretch Marks

Cutaneous Lesions

• Scars
• Verrucas
• Keratoses
• Inflammatory Acne

Caractéristiques / spécifications techniques

• Pump semiconductor wavelength: 808 nm
• Internal crystal output wavelength: 1064 nm
• Frequency conversion via LBO (lithium triborate) to produce green light at 532 nm
• Selectable peak power: 3 W, 4 W, 5 W, 8 W (peak)
• Very short, intense pulse emission; operator control of green-light exit using short pulses
• Designed to protect the epidermis during treatment
• High stability and long lifetime components
• Compact, transportable design with transportation case
• Intuitive menu and plug & play operation (no technician needed)
• Low operating costs
