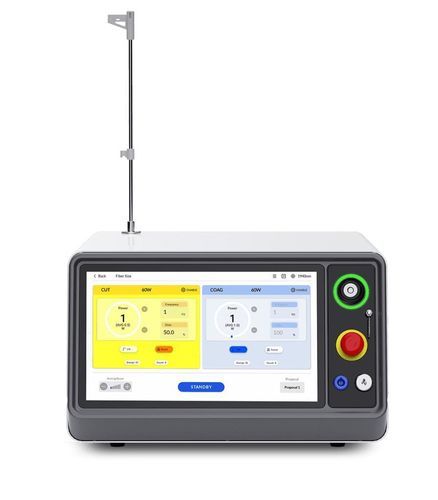

Intracorporeal lithotripter ThuLase Vet

mobile

Overview
Portable Veterinary Thulium Laser Lithotripsy System

• Precision soft tissue surgery
• Veterinary lithotripsy procedures
• Advanced clinical surgical use

Why Thulium Laser
Advanced technology for veterinary surgery providing a balance between cutting precision and coagulation, enabling advanced veterinary surgical applications with minimal thermal impact. Designed for partners targeting high-end veterinary markets.

Distributor Advantages

• Premium product positioning
• Strong differentiation from standard diode systems
• Higher margin potential
• Suitable for advanced and emerging markets

Fiber
Six different fiber sizes are available to accommodate various clinical applications.

• Fiber Size (Core Diameter): 200 μm
• 272 μm
• 365 μm
• 550 μm
• 800 μm
• 1000 μm

Model Specifications (table)
Parameter - Thu-Vet-300 - Thu-Vet-400 - Thu-Vet-600
Order Model - Thu-Vet-300 - Thu-Vet-400 - Thu-Vet-600
Wavelength - 1940nm±5nm - 1940nm±5nm - 1940nm±5nm
Maximum Power - 300W - 400W - 600W
Pilot Beam - 532nm / 635nm - 532nm / 635nm - 532nm / 635nm
Operation Mode - CW/Pulse - CW/Pulse - CW/Pulse
Energy/Pulse - Up to 3J - Up to 4J - Up to 4J
Repetition Rate - 1-3000hz - 1-4000hz - 1-6000hz
Dimensions - 409(W)*518(L)*254(H) mm - 409(W)*518(L)*254(H) mm - 450(W)*536(L)*271(H) mm
Weight - 30Kg - 33Kg - 42Kg

caractéristiques / spécifications techniques

• Product name: ThuLase Vet (Thulium Fiber Laser for veterinary lithotripsy)
• Wavelength: 1940nm ±5nm
• Available maximum power options: 300W, 400W, 600W
• Pilot beam options: 532nm and 635nm
• Operation modes: Continuous Wave (CW) and Pulse
• Energy per pulse: up to 3J (300W model), up to 4J (400W and 600W models)
• Repetition rate ranges: 1–3000 Hz (300W), 1–4000 Hz (400W), 1–6000 Hz (600W)
• Fiber core diameters available: 200 μm, 272 μm, 365 μm, 550 μm, 800 μm, 1000 μm
• Dimensions (W*L*H): 409*518*254 mm (300W & 400W), 450*536*271 mm (600W)
• Weight: ~30 Kg (300W), 33 Kg (400W), 42 Kg (600W)
