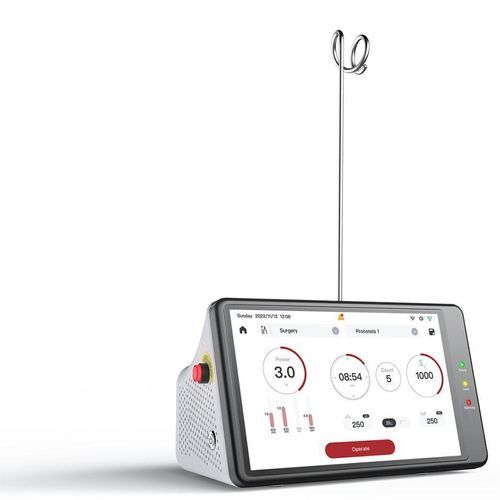

Surgical laser CHEESE PLUS

dentaldental biostimulationphysical biostimulation

Overview
CHEESE PLUS is a mini multi-wavelength medical laser system offering multiple visible and near-infrared wavelengths for clinical applications. The system provides selectable combinations of wavelengths including 450nm, 635/650nm, 810nm, 980/1064nm for various surgical, dental, therapeutic and veterinary uses. FDA 510(k) Number K230047.

Dentistry

• General: The four wavelengths (450nm, 650nm, 810nm, 1064nm) have distinct applications in dentistry to address soft tissue surgeries, biostimulation, deep tissue procedures and pulp/bone interventions.
• 450nm wavelength: Used for certain soft tissue surgeries such as excision and incision; reduces bleeding and tissue damage, accelerates healing, and reduces patient pain and discomfort.
• 650nm (listed as 635nm/650nm): Used for biostimulation and pain treatment; promotes healing and tissue regeneration; alleviates inflammation and pain.
• 810nm wavelength: Used for deep tissue surgery including root canal treatment and oral surgery; penetrates bone and gum tissue while minimizing collateral damage and bleeding; reduces surgery and recovery time.
• 1064nm wavelength: Used for deep tissue surgery such as pulpitis and bone tissue surgery; provides deep penetration to reduce recovery time, alleviate inflammation and pain, and promote tissue healing.

Therapy / Rehabilitation / Pain Management
The different wavelengths provide therapeutic benefits for rehabilitation and pain management by stimulating cells, enhancing circulation, and enabling deep tissue biostimulation. Specific uses described include:

• 650nm: Stimulates cell metabolism, enhances blood circulation, boosts immune function; used for musculoskeletal pain, ligament and tendon injuries, and spinal disorders.
• 810nm: Deep tissue penetration; strong biostimulation to reduce inflammation, relieve pain, and enhance immune response; used for musculoskeletal injuries and inflammatory conditions (muscle pain, soreness, tendonitis).
• 980nm: Strong tissue penetration for deep tissue injury treatments including fractures and spinal disorders; potential applications in neurological therapy.
• 1064nm: Near-infrared wavelength with exceptional penetration depth; effective for deep muscle, bone and joint treatments (lumbar muscle strain, knee joint pain, arthritis) delivering long-lasting pain relief and improved mobility.

Veterinary
CHEESE PLUS is described as applicable to veterinary rehabilitation and veterinary surgical procedures with wavelength combinations adapted for different veterinary models; suitable for rehabilitation, pain management and soft tissue/minimally invasive surgery.

Technical Specifications (tabbed tables from site)
Dentistry table:
Parameter | CHEESE PLUS (CP18G) | CHEESE PLUS (CP13G) | CHEESE PLUS (CP23G)
Order Model | CP18G | CP13G | CP23G
Wavelength | 635nm + 445nm + 810nm | 635nm + 445nm + 1064nm | 635nm + 445nm + 810nm + 1064nm
Maximum Power | 200mW + 3W + 15W | 200mW + 3W + 10W | 500mW + 3W + 10W + 10W
Pilot Beam | 532nm | 532nm | 532nm
Operation Mode | CW, Repeat Pulse | CW, Repeat Pulse | CW, Repeat Pulse
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Therapy table:
Parameter | CHEESE PLUS (CP20RT) | CHEESE PLUS (CP20DRT)
Order Model | CP20RT | CP20DRT
Wavelength | 635nm + 980nm | 635nm + 810nm + 980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W
Pilot Beam | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Veterinary table:
Parameter | CHEESE PLUS (CP20RV / CP25RV variants)
Order Model | CP20RV | CP20RV | CP25RV
Wavelength | 635nm + 980nm | 635nm + 810nm + 980nm | 635nm + 450nm + 810nm + 980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W | 500mW + 5W + 10W + 10W
Pilot Beam | 635nm | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Notes
• System supports multiple order/model variants (examples: CP18G, CP13G, CP23G, CP20RT, CP20DRT, CP20RV, CP25RV) with different wavelength combinations and maximum power configurations.
• Operation modes across variants include continuous wave (CW), repeat pulse and IPS where specified. Pilot beam wavelengths used include 532nm or 635nm depending on variant.

Caractéristiques / Spécifications techniques

• Product name: CHEESE PLUS
• Brand: GIGAA MEDICAL
• Key wavelengths available: 445nm (blue), 450nm, 635/650nm (red), 810nm, 980nm and 1064nm (near-infrared) depending on model
• Example order models (dentistry): CP18G, CP13G, CP23G
• Example order models (therapy): CP20RT, CP20DRT
• Example order models (veterinary): CP20RV, CP25RV
• Maximum power (examples): ranges from 200mW (low-power pilot/biostim) up to configurations including multiple outputs such as 3W, 5W, 10W, 15W, 20W depending on wavelength and model
• Pilot beam: 532nm or 635nm (model-dependent)
• Operation modes: CW (continuous wave), Repeat Pulse, IPS (where specified)
• Pulse duration: 10 μs – 3 s
• Repetition rate: 0.2 Hz – 20 kHz
• Regulatory note: FDA 510(k) Number K230047
