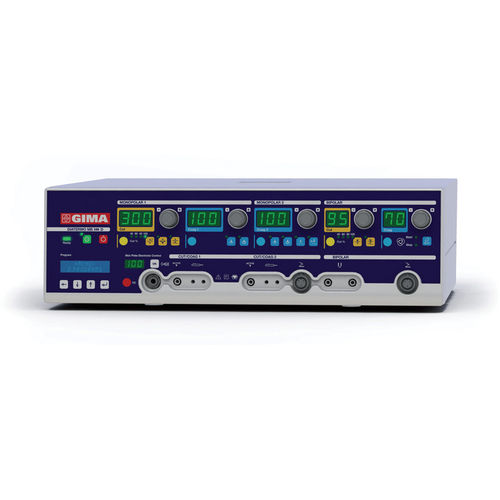

Monopolar cutting electrosurgical unit DIATERMO
bipolar cuttingbipolar coagulationmonopolar coagulation

monopolar cutting electrosurgical unit
monopolar cutting electrosurgical unit
Add to favorites
Compare this product


monopolar cutting, bipolar cutting, bipolar coagulation, monopolar coagulation
Application domain
surgical, neurosurgery, veterinary, urology, endoscopy, gynecological
radio frequency, HF, argon plasma
Cutting power

Max.: 300 W

Min.: 70 W

Coagulating power

Max.: 400 W

Min.: 70 W


Max.: 525 kHz

Min.: 425 kHz


15 kg (33.1 lb)


470 mm (18.5 in)


150 mm (5.9 in)


400 mm (15.7 in)


Hospital electrosurgery units High frequency electrosurgical equipment suitable to deliver current for monopolar cut and coagulated cut (with different levels of coagulation), bipolar cut and coagulation. TWIN OPERATIVE ACTIVITY - two output channels for monopolar cutting - two independent setting and output channels for the most frequent monopolar coagulation CONTROLLED CUTTING PROCEDURES - enhanced cutting current for eschar free incision - cutting current with selectable coagulating property for bleeding controlled dissection - low capacitance coupling by slow BLEND current for endoscopic procedures TWIN CONTROLLED COAGULATION PROCEDURES - SPEEDY coagulation and DEEP coagulation available to two operators - SPRAY coagulation by hand switch or foot switch controls EXTENSIVE BIPOLAR FEATURES - bipolar cutting current with selectable bleeding control - slow BLEND cutting current - automatic Start/Stop coagulation functions SURGEON AND PATIENT TOTAL SAFETY· - acceptability of contact impedance between patient body and return electrode continuously monitored by Skin Plate Electronic Control (SPEC) - H.F. leakage currents continuously monitored - mains fluctuation automatically compensated before delivery of HF power PERSONALIZED PROCEDURES - independent choice of coagulation currents and power levels by each of two operators - up to 10 procedures can be configured and re-called EXTENSION DRIVER AND INTERLOCK SIGNALS - driven output connection to external Argon Plasma unit and Smoke Evacuator unit AUTOMATIC SELF DIAGNOSIS - automatic diagnostic control of the complete functionality of electronic unit and connected accessories with coded report of failures
