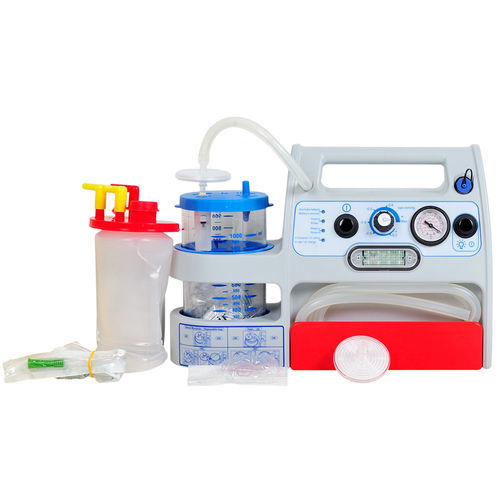

Professional portable high flow - high vacuum aspirators with integrated rechargeable batteries.
It works at 12 V power supply with batteries or directly by mains supply, continuously at 110-230 V while recharging batteries.
Up to 45 minutes of autonomy with fully charged battery.
Technical Specifications
Operating voltage: with internal battery DC 12 V - 4 Ah with power supply 100÷240 V ~ 50/60 Hz - 14 VDC 4,28A
Battery autonomy: about 45 minutes, recharging time approx 6 hours
Size: 134x378xh 263 mm
Weight: 5 kg
Operating cycles: continuous (45 min battery autonomy)
MAX vacuum: 0 ± 85 kPa
Norms: MDD 93/42/EEC (Class lIa - annex IX) EN60601-1(IEC 60601-1) / EN60601-1-2 (IEC 60601-1-2)
UNI EN ISO 10079-1/ UNI CEI EN ISO 14971
Degree of protections against ingress of liquids: IP34d (IEC 529)
Class II - Type B
Standard accessories
Autoclavable 1 l jar with safety valve
2 bacterial hydrophobic filters
Sterile disposable cannula CH14
User manual: GB, IT, FR, DE, ES
Sterile disposable manual regulator
Power supply cord - 2 m
Disposable silicone liner 1 l
Shoulder carrying bag
Wall bracket for ambulance
Multivoltage battery charger
Silicone tubing set Ø 6x12 mm
