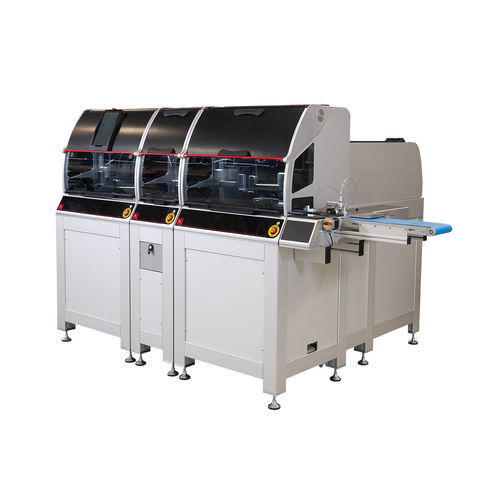

Automatic assembly machine LFDA-3

for the pharmaceutical industry

Flexible, Intelligent, and Modular The flexible setup, modularity, and intelligent design provide you with an efficient assembly process. Quality assurance Compact size Modular integration Flexible Our standard LFDA solution is capable of assembling different test variants and products on the same line. Intelligent Vision guided robot operation and quality inspection ensure high quality. Modular Additional cells for multiple test strips, RFID tags, printing, labeling, ultrasonic welding, cap assembly and pouching. Main features Machine vision guided infeed of materials Strip cutter with card magazine or reel infeed Vision guided component placement, strip cutting and assembly ensure consistent high quality Quick product changeover due to minimal product specific parts Compact design saves valuable space in clean room environments Other configurations LFDA can be easily expanded to include modules for multiple test strips, RFID tags, printing, labeling, laser marking, cap assembly, ultrasonic welding and pouching Housing infeed The housing bulk infeed module comes standard with all LFDA systems. It is capable of handling a wide range of housing types. The bulk feeder mechanism provides controlled and monitored infeed of housings with a customizable buffer. Machine vision inspection ensures each housing fits the quality control requirements before it is placed on the carrier for transfer to the next cell. Intelligent transfer unit Components advance along the LFDA system on the Ginolis intelligent transfer system. The multi-functional system transfers the components from module to module on magnetic carriers across a glass platform.
