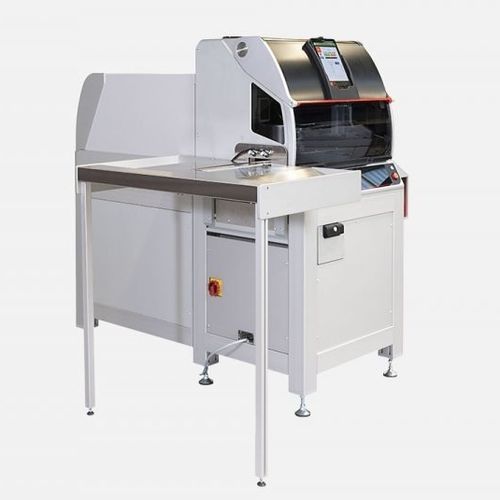

Automatic assembly machine LFDA-1

for the pharmaceutical industry

The affordable price, easy commissioning, and short delivery time provide a quick and smooth start to your rapid test production. With the LFDA-1, you can produce up to 24 parts per minute, taking less than 2,5 m² (less than 26 f²) footprint in your cleanroom. Assembly system for lateral flow devices Up to 20 parts per minute Modular integration Affordable Easy commissioning Fast delivery System layout Manual feeding of the cassette bottom and top Automated strip cut & place – the robot places top plastic Cassette press and quality control Functional description The cassette bottoms and tops are manually fed to the conveyor by the operator. The strip cutter cuts the strip and inspects its quality. The scara robot places the strip on the cassette bottom. The vision system inspects the direction of the strip. The robot places the top cassette at the bottom. The press unit closes the cassette top and bottom The quality control unit performs the final inspection of the finished product. Quality-approved products are ready for use. Failed products are dropped to the reject bin Capacity Up to 20 ppm , depending on machine configuration Card infeed Automatic strip cutting and magazine buffer for laminated cards Card length 300-500 mm Strip length 40 – 98 mm Infeed Manual bottom and cover feeding Plastic parts Width 15 – 40 mm Length 50 – 110 mm Optional features Strip width QC Strip Bad mark automatic reject Press force adjustable 0-1000 N Integrated pressing height measurement during pressing
