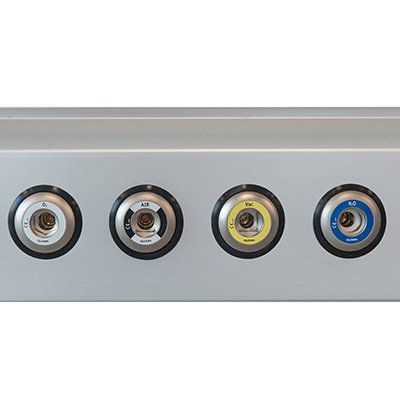

DIN outlet PM0143E

airN2OO2

Attractive, functional design Full metal and robust Gas coded Service-friendly and long-lasting For use in hospitals, clinics and emergency services The terminal unit DIN serves the extraction of medical gases and vacuum from the central gas supply. The terminal unit DIN is for assembling in ducts, installing in ceiling supply units and is designed for flushmounted/surface-mounted installations. A “floating” cover ring (available as an accessory) serves the minimising of the gap between the terminal unit and the front cover. This results in aesthetic and dust-repellent advantages. The design of the terminal unit DIN is unique. The full metal design is robust, functional and long-lasting. The terminal unit DIN has a shut-off valve which fully stops the gas supply without the feed pipe having to be shut off. An easy-to-replace sealing unit guarantees affordable and fast maintenance work. The terminal unit DIN complies with the requirements of the harmonised standard EN ISO 9170-1. CE marking according to the Guideline for Medical Products 93/42/EEC, Appendix IX, Class IIa. Material brass, outer parts nickel plated, copper, POM, EPDM, FKM Operating temperature -20º to +60ºC Dimensions W x D x diameter: 80 mm x 69.5 mm x 50 mm (base assembly group) Weight 700 gr (version media duct)
