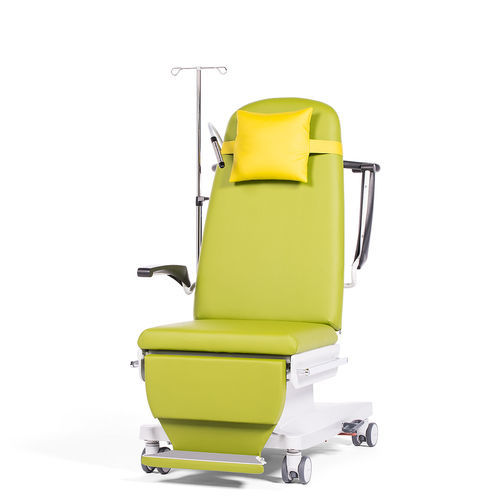

Electric blood donor chair Multiline Next IT

not specifiedwashableon casters

Overview
This compact couch is designed for oncology day hospitals, infusion therapy and transfusion units. It combines a space-saving footprint with fully motorised, stepless adjustment to required positions. Key features include a 60 cm seat width, a leg section that allows a genuine chair position (90°), extra-soft upholstery and patient-oriented armrests suitable for long therapies. The seat section includes a dynamically flexible suspension system for improved ergonomics.

Equipment

• Innovative armrest technology with individual positioning for height, inclination, direction and width adaptation — suitable for infusion therapy
• Backrest can be fixed in any position to simplify transport
• Design compliant with strict hygiene and safety regulations; easy-to-clean surfaces and minimal seams
• Soft upholstery with 60 cm seat width to accommodate a wide patient range
• Access from front or side with folded armrest; entrance height 54 cm
• Leg section configurable to genuine chair position at 90°
• 10 cm twin-wheel castors with central locking option
• Infusion pole holder pivotable left/right with one hand
• Option: twin-wheel swivel castors for linear or free movement

Armrests
Four armrest variants available to match clinical needs, from practical standard to full-foam comfort version.

• Standard
• Standard upholstered
• Upholstered
• Full-foam

Positions
The Multiline Next IT is infinitely motor-adjustable and moves smoothly to any required position.

• Sitting position
• Relax position / Zero-Gravity
• Bed position
• Trendelenburg / Shock position

Accessories (examples)

• Foot switch / emergency switch
• Standard bars
• Infusion bar holder
• Protective cover for leg section
• Infusion bar
• LED reading lamp
• Premium upholstery materials
• Push handle with paper roll holder

Product summary
The Multiline Next IT is a compact therapy couch developed for infusion and transfusion therapy. It provides stepless motorised adjustment, extra-soft upholstery, Multiline 5-position armrests, genuine chair position capability and a range of fittings for prolonged treatment sessions.

Technical data
Length chair position (floor space): 110 cm
Length bed position: 192 cm
Width (overall): 78 cm
Length lying surface: 192 cm
Width lying surface: 60 cm
Padding thickness lying surface: 7.5 cm
Armrest length: 56 cm
Armrest width: 12 cm
Entrance height: 54 cm
Height adjustment range: 54 - 75 cm
Castor diameter: 10 cm
Backrest inclination: -5° to 78°
Seat part inclination: 0 to 22°
Footrest inclination: 0 to 90°
Power supply: 230V/50-60Hz or 110V/50-60Hz
Chair weight: 78 kg
Maximum patient weight: 220 kg

• Length chair position (floor space): 110 cm
• Length bed position: 192 cm
• Width (overall): 78 cm
• Length lying surface: 192 cm
• Width lying surface: 60 cm
• Padding thickness lying surface: 7.5 cm
• Armrest length: 56 cm
• Armrest width: 12 cm
• Entrance height: 54 cm
• Height adjustment range: 54 - 75 cm
• Castor diameter: 10 cm
• Backrest inclination: -5° to 78°
• Seat part inclination: 0 to 22°
• Footrest inclination: 0 to 90°
• Power supply: 230V/50-60Hz or 110V/50-60Hz
• Chair weight: 78 kg
• Maximum patient weight: 220 kg
