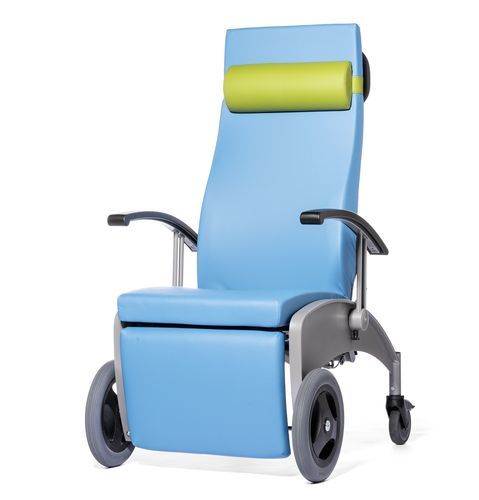

Outdoor transfer chair Carryline Outdoor

with adjustable backrestrecliningwith armrests

Features

• Flagship Carryline in a special outdoor version equipped with outdoor castors and a lap belt
• 300 mm solid rubber front disc wheels and 125 mm outdoor rear swivel castors for smooth travel over thresholds and uneven surfaces
• Comfortable entry height of 49 cm and synchronously adjustable lying surface
• Separate manual adjustment of the leg pad
• Armrests can be swung fully to the rear for easy lateral transfer
• Backrest with anatomical shape and lateral support for patient stability

Outdoor benefits
Special 125 mm outdoor castors, the rubberised push bar and the lap belt ensure high manoeuvrability and safe patient restraint outdoors. The wheel combination enables travel over cobblestones, gravel and grass while maintaining stability and comfort.

Overview / Product information
The Carryline transport chairs from GREINER provide safe and comfortable patient transport across many healthcare settings. The Carryline Outdoor complements the existing Carryline cross and Carryline mobile models with wheels and castors designed for external surfaces.

The chair meets modern transport requirements: a 49 cm entry height, a synchronously adjustable lying surface and easy manoeuvrability reduce caregiver effort while offering seating and reclining comfort up to a body weight of 200 kg. A footrest is omitted to increase ground clearance. The armrests fold back completely to allow unobstructed lateral access.

The Carryline range is developed and manufactured in Germany on a robust steel frame designed for long service life. The large rubberised push bar mounted on the one-piece backrest provides ergonomic handling. Upholstery and cover materials are selected for patient comfort and for durability, cleaning and disinfection in daily clinical use.

Technical Data
Weight: 50 kg - 67 kg
Seat width: 49 cm
Seat depth: 50 cm
Overall depth: 93 cm - 103 cm
Overall height: 132 cm
Seat height: 49 cm
Overall width: 70 cm
Surface area of the reclined chair: 180 cm
Diameter of front castors: 300 mm
Diameter of rear castors: 125 mm
Extension of extendable footrest: 20 cm
Max. patient weight: 200 kg

Technical specifications

• Weight: 50 kg - 67 kg
• Seat width: 49 cm
• Seat depth: 50 cm
• Overall depth: 93 cm - 103 cm
• Overall height: 132 cm
• Seat height: 49 cm
• Overall width: 70 cm
• Surface area of the reclined chair: 180 cm
• Diameter of front castors: 300 mm
• Diameter of rear castors: 125 mm
• Extension of extendable footrest: 20 cm
• Max. patient weight: 200 kg
