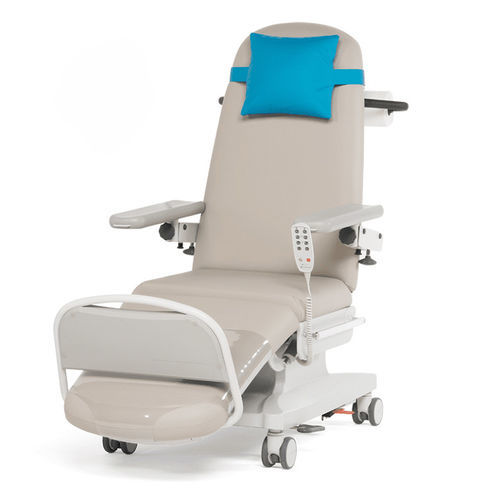

Electric hemodialysis chair MULTILINE NEXT DC

generalrecliningTrendelenburg

Overview
With MULTILINE NEXT DC, GREINER presents a dialysis chair developed for hospitals and clinics that meets dialysis-specific requirements. Extra-soft upholstery and durable, hygienic covers provide patient comfort while smooth surfaces and minimal seams support infection control. Five-position armrests allow adaptable support; high-performance electric motors provide stepless, quiet adjustment to seated and reclining positions including emergency Trendelenburg. The chair is electronically adjustable, intuitive to operate with the GREINER control unit and is available with 3, 4 or 5 motors. Design and functions facilitate safe, mobile and efficient use by caregivers and patients.

Equipment

• Dialysis chair with 3–5 motors, optional central locking, comfortable cushions and integral foam armrests
• Armrest system with independent adjustment of height, tilt, orientation and lateral position, adjustable to torso width
• Extra-comfort upholstery with wide 60 cm seat, hand-finished
• Access height from 54 cm depending on model and fittings
• Hygienic design: tested surfaces, minimal seams and easy-to-clean finishes
• 10 cm twin-wheel castors, central locking optional
• Footrest with automatic, patient-friendly length adjustment (removable)
• Optional twin-wheel swivel castors for linear or free movement

Positions
Infinitely motor-adjustable; moves smoothly and quickly to any required position including seated, relax/zero-gravity, flat bed and Trendelenburg.

Armrests
Choose from two variants:

• Upholstered
• Full-foam

Accessories (examples)

• Infusion bar holder
• LED reading lamp
• Standard rails (norm rails)
• Push handle with paper roll holder
• Foot switch / emergency switch
• Protective cover for leg section and footrest
• Premium upholstery material
• Infusion bar

Dialysis therapy couch — design and comfort
GREINER developed this generation of therapy couches to prioritise patient comfort, ergonomics and clinical efficiency. Soft cushioning materials ensure long-term comfort and facilitate hygiene. Motorised adjustments (back, seat, leg section, footrest, vertical lift) are fast and smooth. The seat suspension allows freedom of movement for spine, pelvis and hips to reduce pressure points. MULTILINE five-position armrests provide versatile, patient-friendly support.

Technical specifications

• Length chair position (floor space): 148 cm
• Length bed position: 230 cm (final position of footrest)
• Width: 80 cm
• Length lying surface: 220 cm
• Width lying surface: 60 cm
• Padding thickness lying surface: 9 cm
• Length armrest: 58 cm
• Width armrest: 13 cm
• Entrance height: 54 cm
• Height adjustment: 21 cm (54–75 cm)
• Diameter of castors: 10 cm
• Backrest inclination: -5° to 78°
• Seat part inclination: 0 to 22°
• Footrest inclination: -25° to 0°
• Travel distance footrest: 25 cm
• Travel speed from sitting position to Trendelenburg position: 11 s
• Max. patient weight: 220 kg
• Voltage: 230 V/50–60 Hz; 110 V/50–60 Hz
• Weight of chair: 105–110 kg
