Endoscopic surgical clip LigaV®

titaniumV-shapedbiocompatible

Overview

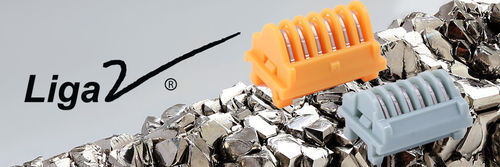

LigaV® clips are V-shaped ligating clips supplied with inner and outer sleeves that enhance function: the inner sleeve assures proper grip on the tissue and enables its nourishment whereas the outer sleeve improves affixing of the clip in the applier. The clips are manufactured of apyrogenic titanium, ensuring biocompatibility. The product is offered in four standard sizes and delivered in colour-coded cartridges for easy identification. A cartridge includes 6 clips; other cartridge quantities (4, 6 or 20) are available on special order.

Product family

• Ligating clips
• Endoscopic clip appliers: LigaV® Standard endoscopic clip appliers, LigaV® OmniFinger™ articulating endoscopic clip appliers, LigaV® 25° endoscopic clip appliers
• Open surgery clip appliers

Key features (clips)

• V-shaped ligating design
• Made of apyrogenic titanium (high biocompatibility)
• Four standard sizes: Small, Medium, Medium-Large, Large

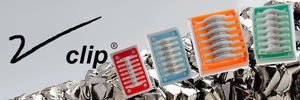

• Delivered in colour-coded cartridges for easy and intuitive identification
• Cartridge quantities: 4, 6 or 20 clips (standard cartridge includes 6 clips)
• Easy loading system
• Colour-coded applier rings matching cartridge hue

Available sizes

• Small
• Medium
• Medium-Large
• Large

LigaV® Endoscopic Clip Appliers — general
Clip appliers with properly sized jaws depending on the clip should be used. A wide range of open and endoscopic appliers and additional equipment is available to meet clinical requirements.

LigaV® Standard endoscopic clip appliers — Key features

• Available for Small, Medium, Medium-Large and Large non-absorbable LigaV® clips
• Jaws activated by front handle for improved stability
• 360° shaft rotation by index finger allows one-hand operation
• Flushing port facilitates easy cleaning to reduce contamination risk
• Made of high-quality stainless steel
• Colour-coded rings matching cartridge hue
• Compatible with corresponding sizes of LigaV® titanium non-absorbable clips

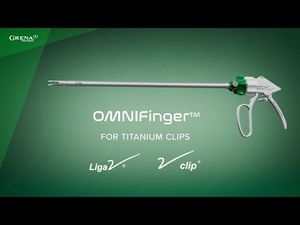

LigaV® OmniFinger™ articulating endoscopic clip appliers — Key features

• Available for Medium, Medium-Large and Large non-absorbable LigaV® clips
• 60° total angulation (articulation)
• Articulation plus 360° shaft rotation by index finger allows one-hand operation
• Flushing port facilitates easy cleaning to reduce contamination risk
• Made of high-quality stainless steel
• Colour-coded rings matching cartridge hue
• Compatible with corresponding sizes of LigaV® titanium non-absorbable clips

LigaV® 25° endoscopic clip appliers — Key features

• Available for Medium-Large non-absorbable LigaV® clips
• Jaws activated by front handle for improved stability
• 360° shaft rotation by index finger allows one-hand operation
• Flushing port facilitates easy cleaning
• Made of high-quality surgical stainless steel
• Colour-coded rings matching cartridge hue
• Jaws angle 25°

LigaV® Open Surgery Clip Appliers — Key features

• Available for Small, Medium, Medium-Large and Large non-absorbable LigaV® clips
• Lengths: 15 cm, 20 cm, 28 cm
• Non-detachable design for easier maintenance and durability; appliers with properly sized jaws
• Made of high-quality stainless steel
• Colour-coded rings matching cartridge hue
• Compatible with corresponding sizes of LigaV® titanium non-absorbable clips

Technical characteristics / specifications

• Product name / series: LigaV®
• Type: V-shaped titanium ligating clips
• Material (clips): apyrogenic titanium
• Standard sizes: Small, Medium, Medium-Large, Large
• Cartridge identification: colour-coded cartridges and applier rings
• Clips per cartridge: standard 6 clips (other quantities 4, 6 or 20 available on special order)
• Applier materials: high-quality stainless steel or surgical stainless steel depending on model
• Endoscopic applier features: 360° shaft rotation (index finger), flushing port for cleaning, jaws activated by front handle (where specified)
• OmniFinger™ articulation: 60° total angulation
• 25° applier: jaws angle 25°
• Open surgery applier lengths: 15 cm, 20 cm, 28 cm
• Intended use: ligation of tissue structures in open and endoscopic surgery
