Essential congenital pronated valgus hindfoot of child and adolescent.
In association with calcaneal medializing osteotomy with asignificant hindfoot launch in a pronated unstable adult foot.
INDICATIONS FOR USE :
Cannulated conical endorthesis (7,8,9,10,11,12 mm) Titanium Ti6A|4 ply -LATEX FREE – Removal instrumentation for retrieval.

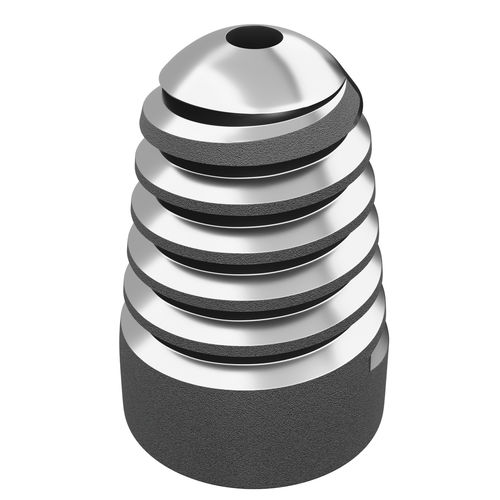

The subtalar screw has been specially designed to correct and limit excessive flatfoot pronation in adults and children. Inserted and stabilized by its shape in the sinustarsi, it restores the calcaneus to its normal position in relation to the talus and forms an internal arch.
Sterile package.
CODE - Ø - LENGTH
42-0712 - 7 - 12 mm
42-0814 - 8 - 14 mm
42-0914 - 9 - 14 mm
42-1014 - 10 - 14 mm
42-1116 - 11 - 16 mm
42-1216 - 12 - 16 mm
INSTRUMENTATION
CODE - DESCRIPTION
ML-2000 - Endosenotarsal screw instrument set
ML-1007 - 7mm thread gauge
ML-1008 - 8mm thread gauge
ML-1009 - 9mm thread gauge
ML-1010 - 10mm thread gauge
ML-1011 - 11mm thread gauge
ML-1012 - 12mm thread gauge
42-4230 - 3.5mm hex screwdriver
42-4220 - Extractor
42-4240 - Probe
63-1822 - Guide wire
55-2951 - Slim handle with 1/4 cannulated quick coupling
