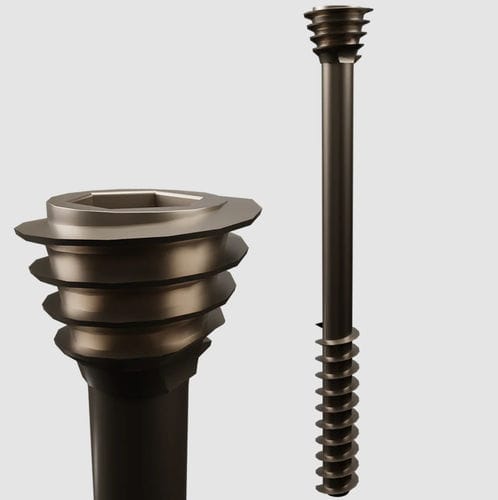

Hindfoot arthrodesis screw EAGLE

talonavicular jointmidfootcannulated

DOWNLOAD

• Brochure EAGLE ENG
• Brochure EAGLE ITA
• Surgical technique EAGLE ITA

FEATURES

• Cannulated titanium screw (ISO 5832-3)
• Indicated for midfoot and hindfoot applications
• Sterile packaging
• Compatible pin (K-wire): Ø 1.5 mm for Ø 4.6 mm screw; Ø 2.2 mm for Ø 7.0 mm screw

INDICATIONS FOR USE

• Talo-navicular arthrodesis
• Midfoot arthrodesis (M1/C1 Lapidus)
• MPGO arthrodesis

LENGTH / REF
LENGTH | REF
20 | 38.98.20
22 | 38.98.22
24 | 38.98.24
26 | 38.98.26
28 | 38.98.28
30 | 38.98.30
32 | 38.98.32
34 | 38.98.34
36 | 38.98.36
38 | 38.98.38
40 | 38.98.40
42 | 38.98.42
44 | 38.98.44
46 | 38.98.46
48 | 38.98.48
50 | 38.98.50
52 | 38.98.52
54 | 38.98.54
56 | 38.98.56
58 | 38.98.58
60 | 38.98.60

INSTRUMENTATION
Ø 4.6 mm screws are used with K-wire Ø 1.5 mm – L 150 mm – 1 trocar tip.

N° | PRODUCT | REF
1 | SCREWDRIVER HANDLE WITH AO ATTACHMENT | 14.32.03
2 | CANNULATED SCREWDRIVER TERMINAL Ø 4.6 MM | 14.30.17
3 | CANNULATED DRILL-COUNTERSINK FOR SCREW Ø 4.6 MM | 14.37.34
4 | CANNULATED SCREW THREAD Ø 4.6 MM | 14.33.36
5 | CANNULATED DRILL FOR SCREW Ø 4.6 MM | 14.37.33
6 | CANNULATED SCREW GAUGE Ø 4.6 MM | 14.33.33
7 | 2 WIRES OF K Ø 1.5 MM - L 150 MM 1 TIP 3/4 | 14.63.44
8 | CONTAINER BOX | 14.10.96

Technical specifications

• Model name: EAGLE
• Material: Titanium (ISO 5832-3)
• Diameter (screw): Ø 4.6 mm
• Intended anatomical area: Midfoot and hindfoot
• Packaging: Sterile
• Compatible K-wire for Ø 4.6 mm screw: Ø 1.5 mm, length 150 mm, 1 trocar tip
• Available lengths (mm) and product references: 20–60 mm (see LENGTH / REF table)
• Instrumentation: detailed instrument list with references (see INSTRUMENTATION table)
