Steam disinfectant sprayer

sprayfogportable

Product name

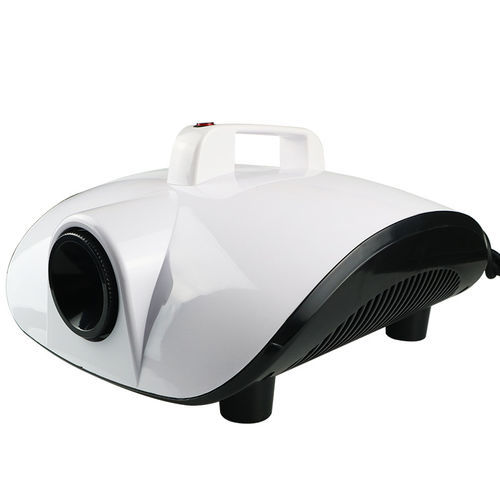

Portable disinfectant sprayer DS-7 — pressure steam sterilization equipment

Technical Parameters
Power supply: 220V 50Hz / 110V 60Hz
Motor power: 600–1000 W (CPU-controlled)
Power cord length: 5 m
Net weight: 3.7 kg
Medicine tank capacity: 7 L
Adjustable spray volume: 400 ml/min
Fog particle diameter: ≤ 50 μm
Range: 6–8 m
Dimensions: 48.0 × 22.5 × 26.0 cm

Advantages

• Handle made of high-density, corrosion-resistant PP for secure grip and durability.
• CPU-controlled motor protection prevents overheating and ensures stable operation.
• Waterproof switch with precise spray-volume adjustment.
• High fog output with fine particles for deep penetration and rapid diffusion up to 6–8 m.

Features

• Adjustable, uniform droplet size suitable for both space spray and residual treatments.
• Corrosion-resistant solution and air tubes; atomizing head designed for anti-crack, anti-vibration and temperature stability to extend service life.
• Transparent water purification tank cover and scale markings for accurate chemical mixing.
• Patented anti-backflow design to prevent solution return.
• Frequency-conversion motor with adjustable output head for low noise and reduced chemical consumption.
• Applications: disinfection, sterilization, pest control and air purification in hospitals, schools, hotels, homes, farms, veterinary clinics, quarantine and customs.

Specifications / technical data

• Power supply: 220V 50Hz or 110V 60Hz
• Motor power: 600–1000 W (CPU-controlled)
• Power cord length: 5 m
• Net weight: 3.7 kg
• Medicine tank capacity: 7 L
• Adjustable spray volume: 400 ml/min
• Fog particle diameter: ≤ 50 μm
• Spray range: 6–8 m
• Dimensions: 48.0 × 22.5 × 26.0 cm
