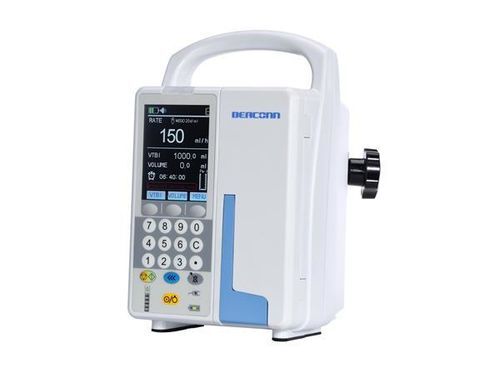

Volumetric infusion pump HY-800A

1-wayfor drug deliveryprogrammed automatic bolus

Features

• Compact design
• Ergonomic, intuitive interface — easy to operate
• Allows flow-rate adjustment during infusion
• 3.2-inch high-definition color TFT display
• Dual CPU system for enhanced safety and reliability
• Manual bolus and automatic bolus functions
• Flow rate, time/volume and dosage/weight operating modes
• Stepwise (stage) infusion mode for particular protocols
• Optional drip sensor and fluid heater
• Compatible with infusion sets from all brands
• Dynamic pressure display and 3-level occlusion sensitivity (each level programmable)
• Automatic impact-dose release after occlusion (anti-bolus)
• Rotatable fixation clamp for vertical and horizontal mounting
• Records up to 2000 history entries and stores last configuration
• Upgradeable drug library and wireless monitoring

Parameters
IV sets: Standard IV sets 20 d/ml and 60 d/ml, tube diameter 3.4–4.5 mm
Infusion modes: Volumetric
Infusion accuracy: ≤ ±5% (after calibration)
Drip-rate range: 20 d/ml sets: 1–400 d/min; 60 d/ml sets: 1–150 d/min
Flow rate range: 0.1 ml/hr – 1200 ml/hr
Volume limit: 0.1 – 9999 ml
Purge rate: 600 ml/hr
BOLUS: Default 600 ml/hr with volume 2 ml (adjustable)
KVO: 0.1 – 10 ml/hr
Bubble detection: Ultrasonic with 3-level sensitivity, 50–300 μl
Occlusion alarm: 3-level sensitivity (programmable values)
Audio & visual alarms: bubble, door open, infusion finished, pause overtime, leakage, empty, battery low, motor reverse, incorrect parameter, motor failure, abnormal drip sensor, occlusion, AC lost, etc.
Power source: ≤25 W, 85–265 V, 50/60 Hz
Display: 3.2 in Color TFT
Battery: DC 12 V, 2000 mAh (~4 hours at 125 ml/hr after full recharge)
Operating conditions: Temperature +5°C – +40°C; Relative humidity ≤80%; Atmospheric pressure 70–106 kPa
Dimensions: 167 × 125 × 115 mm
Weight: 1.8 kg

Technical specifications

• Model: HY-800A
• Infusion modes: Flow rate / Time-Volume / Dosage-Weight
• Flow rate range: 0.1–1200 ml/hr
• Infusion accuracy: ≤ ±5% (after calibration)
• IV set compatibility: 20 d/ml and 60 d/ml (diameter 3.4–4.5 mm)
• Alarms: Multi-condition audio & visual alarms including occlusion and bubble detection
• Bubble detection: Ultrasonic, 3 sensitivity levels (50–300 μl)
• Occlusion sensitivity: 3 programmable levels
• Battery: DC 12 V, 2000 mAh (~4 hours at 125 ml/hr)
• Display: 3.2-inch color TFT
• Power: ≤25 W, 85–265 V, 50/60 Hz
• Memory: 2000 history records and last-configuration memory
• Dimensions & weight: 167 × 125 × 115 mm; 1.8 kg
