DICOM computer workstation DOR-M01

for PACSfor operating roomsendoscopy

Product description

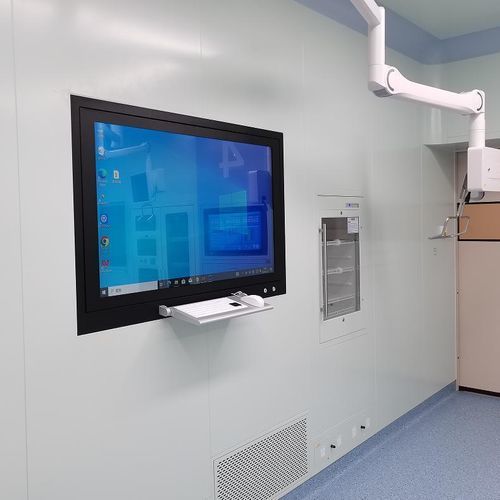

The surgical computer workstation with integrated monitor and built-in IT and video management components is a digital image viewing system designed for use in the operating room. It is available with 42"/55"/65" 4K displays or 24"/27" FHD displays, built into a recessed wall module with a hinged lid for protected operation and easy access.

Type / Model / Material / Colour

• Type: Digital Operating Room Module
• Model: DOR-M01
• Material: aluminum frame, glass front
• Colour: silvery / dark grey

Application domain
Intended for diagnostic review, surgical procedures, endoscopy, integration with PACS and DICOM workflows in operating theatres.

Optional components

• 42" / 55" / 65" 4K display options
• 24" / 27" FHD monitor options
• Medical-grade keyboard consoles (mountable)

Features

• Wall-mounted, recessed installation for flush integration
• IP65 rated for splash and dust protection
• Video recording and capture capability
• USB 3.0 hub for external devices
• Customizable I/O configuration to suit OR equipment

Material details
The keyboard tray and external screen frame are primarily aluminum and glass, corrosion-resistant and validated by a 36-hour salt spray test for long-term durability in clinical environments.

Cleaning and disinfection
Mountable medical keyboard and AR/AG coated glass front are designed for easy cleaning, wiping and disinfection using standard hospital-compatible agents.

Test & Certification
CE, FCC Class 15 Part B, EN60601-1-2 (electromagnetic compatibility), RoHS, IP65.

Warranty
3 years.

Technical specifications

• Integrated monitor with built-in IT and video management components
• Monitor options: 42"/55"/65" 4K; 24"/27" FHD
• Hinged protective lid
• Mountable keyboard tray
• USB 3.0 hub
• IP65 rating (waterproof/splashproof)
• Materials: aluminum and glass; salt spray test 36 hours
• Certifications: CE, FCC Class 15 Part B, EN60601-1-2, RoHS
• Warranty: 3 years
