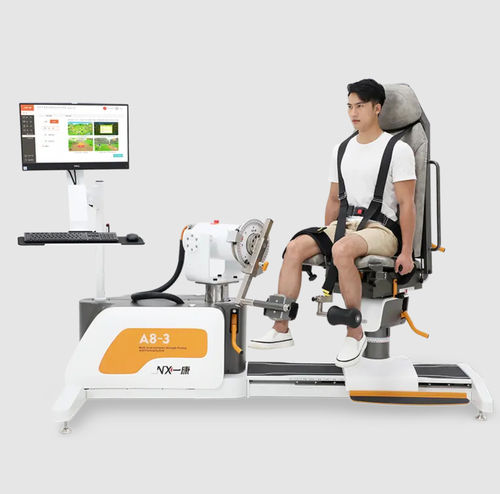

Knee isokinetic dynamometer A8-3

anklehipelbow

Overview

Multi-joint isokinetic training and testing equipment A8-3 designed for objective assessment and progressive rehabilitation training of shoulder, elbow, wrist, hip, knee and ankle in clinical and rehabilitation settings.

Key features

• Multi-resistance isokinetic system supporting 22 movement modes for assessment and training.
• Measures parameters including peak torque, peak torque/body weight ratio and work; suitable for baseline and progress evaluation.
• Records, analyzes and compares sessions; generates printable reports and stores data for follow-up and research.
• Real-time display of test and training data with graphical output for practitioner review.
• Multiple rehabilitation modes (constant velocity centripetal/centrifugal, passive, etc.) to match different recovery stages.
• Targeted testing and training for specific muscle groups and joints.

Contraindications

• Severe local joint pain.
• Severe joint mobility limitation.
• Synovitis or active joint effusion.
• Instability of the joint or adjacent joints.
• Fracture or severe osteoporosis.
• Bone or joint malignancy.
• Early postoperative period.
• Soft tissue scar contracture, acute swelling, acute strain or sprain.

Technical specifications

• Model: A8-3
• Training joints: Shoulder, elbow, wrist, hip, knee, ankle
• Size: 200 × 80 × 180 cm
• Training modes: 22
• Rotating angle: -90 ~ 90°
• Lowest speed: 0.02°/s
• Highest torque: 700 Nm
• Operating temperature: 5 ~ 40 ℃
• Operating platform: Laptop

Intended use

• Clinical assessment and rehabilitation centers for objective strength testing and targeted isokinetic training.
• Use by physiotherapists, rehabilitation specialists and researchers for diagnostics, treatment planning and progress monitoring.
