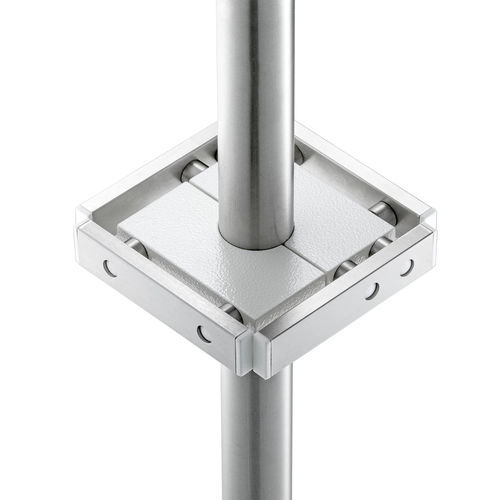

Pole-mounted rail 116-048-dd
Add to favorites
Compare this product
Characteristics
- Other characteristics
- pole-mounted
Description
Product
Art-No.: 116-048-dd
Product details
Product types
Product advantages
Available executions / model variants
Ø Pole 18 mm; Ø Pole 25 mm; Ø Pole 38 mm
Technical specifications
Art-No.: 116-048-dd
Product details
- Ø Pole: 18 / 25 / 38 mm
- Number of rails: 4
- Cross section: 25 x 10 x 1.5 mm
- Length rail: 100 mm
- External dimensions: 140 x 140 mm
- Max. payload: 40 kg (10 kg per rail)
- Weight: approx. 0.9 kg
- Material: stainless steel, aluminum
- Surface finish: brushed / powder coated RAL 9010
Product types
- Medical Device
- Intermediate product
Product advantages
- Universal mounting of rail accessories
- Infinitely height-adjustable
- Divided clamp for easy retrofitting
- Rail 25 x 10 mm according to DIN EN ISO 19054
Available executions / model variants
Ø Pole 18 mm; Ø Pole 25 mm; Ø Pole 38 mm
Technical specifications
- Art-No.: 116-048-dd
- Ø Pole: 18 / 25 / 38 mm
- Number of rails: 4
- Cross section: 25 x 10 x 1.5 mm
- Length rail: 100 mm
- External dimensions: 140 x 140 mm
- Max. payload: 40 kg (10 kg per rail)
- Weight: approx. 0.9 kg
- Material: stainless steel, aluminum
- Surface finish: brushed / powder coated RAL 9010
