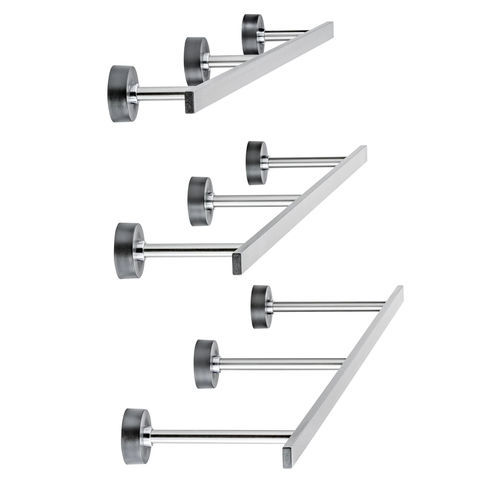

Wall-mounted rail 114-006-ddd-cc
Add to favorites
Compare this product
Characteristics
- Other characteristics
- wall-mounted
Description
Product
Product details
Product advantages
Technical specifications
- Standard wall rail for medical equipment
- Art-No.: 114-006-ddd-cc
- Product types: Medical device; Intermediate product
Product details
- Cross section: 25 x 10 x 1.5 mm
- Length: up to 6,000 mm
- Wall distance: 46 - 250 mm
- Center distance wall holder: 400 mm
- Edge distance of wall holder: averaged
- Weight: approx. 1.7 - 2.1 kg/m
- Max payload: up to 100 kg/m
- Color: black, white
- Material: stainless steel
- Surface: brushed
Product advantages
- Prevents rail misalignment with service channels or wall projections
- Compliant with DIN EN ISO 19054
- Potential equalization at wall bracket or directly on rail
- Closed ends
- Cap-in mounting principle for easy installation
- Includes wall bracket and endcap
- Cap color: black or white
- Custom production available (no fixed sizes)
Technical specifications
- Art-No.: 114-006-ddd-cc
- Cross section: 25 x 10 x 1.5 mm
- Length: up to 6,000 mm
- Wall distance: 46 - 250 mm
- Center distance wall holder: 400 mm
- Edge distance of wall holder: averaged
- Weight: approx. 1.7 - 2.1 kg/m
- Max payload: up to 100 kg/m
- Color: black, white
- Material: stainless steel
- Surface: brushed
