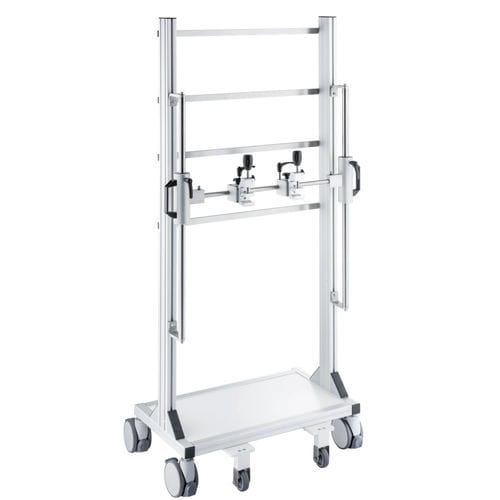

Medical trolley 126-005

hospitalutilityanodized aluminum

Product name
Equipment trolley 126-005

Art-No.
126-005

Product types

• Medical device
• Intermediate product

Product details
WxDxH: 770 x 450 x 1760 mm
Number of rails: 4
Rail cross section: 25 x 10 mm
Castors: 4 × Ø 125 mm, lockable, antistatic
Clamping range: Ø 20–40 mm
Maximum payload: 120 kg
Weight: 117 kg
Materials: stainless steel, aluminum, steel
Surface finish: brushed, anodized, powder coated RAL 9010

Product advantages

• Attachment to hospital beds
• Infinitely adjustable mounting clamps
• Infinitely adjustable distance between mounting clamps
• 360° rotatable mounting clamps
• Quick-release clamps
• Infinitely height-adjustable rails according to DIN EN ISO 19054 for accessory attachment
• Stable profile construction
• Massive foot weighting for stability
• Potential equalisation connection
• 4 swivel castors suited for use in confined spaces
• Supplied with mounting clamps pre-installed and adjustable
• Retrofitting of rails possible
• Space-saving due to compact dimensions

Technical specifications

• Article number: 126-005
• Dimensions (WxDxH): 770 x 450 x 1760 mm
• Number of rails: 4
• Rail cross section: 25 x 10 mm
• Castors: 4 × Ø 125 mm, lockable, antistatic
• Clamping range: Ø 20–40 mm
• Maximum payload: 120 kg
• Weight: 117 kg
• Materials: stainless steel, aluminum, steel
• Surface finish: brushed, anodized, powder coated RAL 9010
• Standards: rails compatible with DIN EN ISO 19054 for accessory attachment
