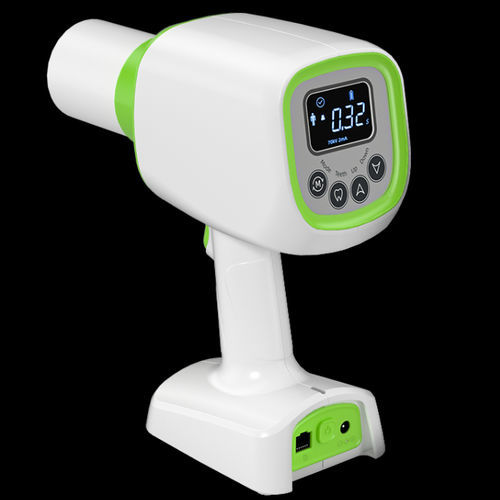

Digital intraoral X-ray system SUPER05

portable70 kV0.4 mm

Charger Input - 100–240V, Frequency: 50/60Hz, Power: 30VA Internal Power Supply - 14.8V Power Internal Resistance - ≤2Ω Main Unit Input Voltage - 19V– Radiation Direction & Distribution - Collimator diameter: 60mm Dose Rate - 2mGy/s Target Material - Tungsten Target Angle - 15° Tube Current - 2mA ±20%; Exposure Time Adjustment Range: 0.04s–2.0s; Error: ±(10% + 1ms) Inherent Filtration - 1.0mmAl @70kV (YY/T0062-2004) Additional Filtration - 0.5mmAl @70kV (YY/T0062-2004) Total Filtration - 1.5mmAl @70kV (YY/T0062-2004) Half Value Layer - ≥1.6mmAl @70kV Duty Cycle - 1/15 Leakage Radiation Load Factor - 1s exposure, 15s pause; Leakage radiation rate <0.25mGy/h @1m (70kV, 2mA, 1s, 1s/15s interval) Weight - 2Kg Tube Assembly Weight - 1.1Kg
