video corpo

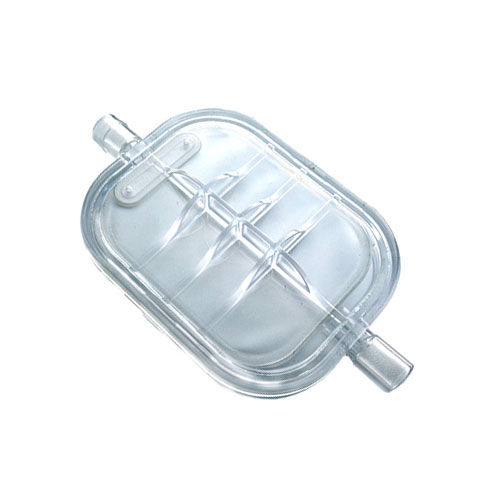

Liquid filter Speedflow Ultra
venousPTFE

liquid filter
liquid filter
Add to favorites
Compare this product


Characteristics

Fluid
for liquids
Applications
venous
Material
PTFE

Description

SPECIFICATIONS Product codeRS075ACYR..A00 DescriptionSpeedflow ULTRA 0.2, 1.2, 5.0 μm PES - IV Vented adult filter (PTFE), Tube IN/Tube OUT Length (mm)75.0-100.0 Width (mm)59 Weight (g)35,8 Depth (mm)25,4 Effective filtration area (cm2)PES: 60.0 PTFE 22.0 Inlet / outletInlet: tube ID 4.8 x OD 6.8 Outlet: tube ID 4.8 x OD 6.8 Materials of constructionFilter media: Hydrophilic HI-FLO PES 0.2 µm and 0.2 µm positive charged, or 1.2 µm, and 5 µm Vent: Hydrophobic PTFE membrane 0.03 µm Housing: Clear Modified Acrylic BiosafetyMaterials comply with USP class VI-121°C test, ISO 10993, REACH, RoHS Minimum water bubble point0.2 µm: 3.7-4,8 bar (54-70psi)1.2 µm: 0.7-1.0 bar (10-15psi)5.0 µm: 0.15-0,3 bar (2.2-4.5psi) Water breakthroughPTFE Hydrophobic membrane: 3.0bar (43.5psi) Minimum water flow rate0.2 µm: 280ml/min at 80cm (31.5”) head pressure1.2 µm: 1,08lt/min at 80cm (31.5”) head pressure5.0 µm: 2,04lt/min at 80 cm (31.5”) head pressure0.2 µm positive membrane: (pressure drop measured between inlet and outlet, flow on peristaltic pump)200 ml/min at 80cm (31.5”) head pressure420 ml/min at 255cm (100,4”) head pressure Air flow>400 cc/min@100mbar Pressure (bar)2.0bar (29.00psi) Pyrogenicity7LRV – Brevundimonas diminuta1.2 µm – Candida albicans Filtration efficiency100% Temperature5 - 40° Priming volume10,3 ml Sterilization compatibilityEtO or Gamma (25kGy).
