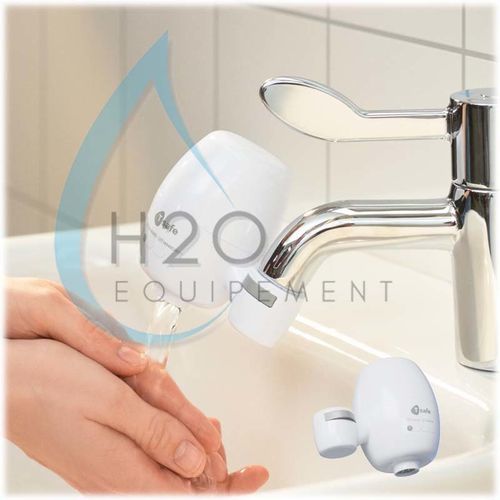

Membrane filtration unit

antibacterialwaterfor hospitals

Terminal filtration
for surgical sink or electronic hand wash station

Overview
End-of-line filters installed at the tip of spouts to retain microorganisms present in the water and reduce the risk of nosocomial infections. Anti-Legionella design and multiple usage-duration models (1 to 4 months) to adapt maintenance to facility needs. Autoclavable options are available for reuse after sterilization.

Terminal filter — 31 days (1 month)

• T-safe faucet filter, anti-Legionella and anti-all germs
• Device material: ABS
• Membrane type: tubular microfiltration
• Membrane material: Polysulfone
• Cut-off rating: sterilizing-grade filter, 0.2 μm tubular membrane
• Maximum upstream operating pressure: 5 bar
• Maximum upstream temperature: 60°C
• Maximum usage duration: 31 days after installation (1 month) — also available in 62 days, 92 days, and 4 months
• Single lateral support
• Flow regulator: constant flow technology
• Integrated non-return valve prevents back-contamination during filter replacement
• Thermal shock resistance: 70°C for 30 minutes
• Chemical shock resistance: 1000 ppm active chlorine for 1 cumulative hour
• Traceability: GS-1 DataMatrix
• Flow rate: 3.8 L/min at 1 bar; 6.0 L/min at 3 bar; 6.1 L/min at 5 bar

Terminal filter — 2 months usage

• Faucet and wall-mounted shower filter, anti-Legionella and anti-all germs, shower jet to prevent splashing
• Device material: ABS
• Membrane type: tubular microfiltration
• Membrane material: polyethylene
• Cut-off rating: 0.1 µm nominal and 0.2 µm absolute (sterilizing grade)
• Water volume: 6,000 liters
• Filtration flow rate (filter only): 4.6 L/min at 1 bar; 7.6 L/min at 3 bar; 9.4 L/min at 5 bar
• Controlled backflow prevention: protective skirt and angled connection for optimal positioning
• Maximum pressure: 5 bar
• Maximum usage duration: 4 months
• Thermal shock resistance: 70°C for 20 minutes
• Chemical shock resistance: 100 ppm active chlorine for a cumulative 4 hours
• CE Class I medical device

Terminal filter — 3 months usage

• Tap and wall shower filter, anti-Legionella and anti-all germs, shower jet
• Device material: ABS
• Membrane type: tubular microfiltration
• Membrane material: polyethylene
• Cut-off: 0.1 µm nominal and 0.2 µm absolute (sterilizing grade)
• Water volume: 9,000 liters
• Filtration flow rate (filter only): 4.6 L/min at 1 bar; 7.6 L/min at 3 bar; 9.4 L/min at 5 bar
• Controlled back-contamination management: protective skirt and angled connection
• Maximum pressure: 5 bar
• Maximum usage duration: 4 months
• Thermal shock resistance: 70°C for 30 minutes
• Chemical shock resistance: 100 ppm active chlorine for a cumulative 3 hours
• CE Class I medical device

Terminal filter — 4 months usage

• Filtration tap and wall shower, anti-Legionella and anti-all germs, shower jet
• Device material: ABS
• Membrane type: tubular microfiltration
• Membrane materials: polyethylene
• Cut-off: 0.1 µm nominal and 0.2 µm absolute (sterilizing grade)
• Water volume: 12,000 liters
• Filtration flow rate (filter only): 4.6 L/min at 1 bar; 7.6 L/min at 3 bar; 9.4 L/min at 5 bar
• Controlled back-contamination management: protective skirt and angled connection
• Maximum pressure: 5 bar
• Maximum usage duration: 4 months
• Thermal shock resistance: 70°C for 30 minutes
• Chemical shock resistance: 100 ppm active chlorine for a cumulative 4 hours
• CE Class I medical device

Autoclavable terminal filter (reusable)

• Requires a Walter-type connection
• Autoclavable 60 times
• Filtration at 0.2 µm absolute
• Outlet: straight jet or spray
• Sterilization: 60 cycles at 134°C — 18 min
• Traceability label indicating the number of autoclave cycles
• Maximum operating pressure: 5 bar
• Filtration flow rate: 10 L/min at 3 bar
• Filtration surface: 900 cm²
• Pharmaceutical grade
• Provides 60 days of sterile water assuming one sterilization per day

General advantages

• Protected against Legionella and all types of germs
• Compact design for minimal footprint; ideal for small sinks as the filter can be remotely mounted
• Options available for different usage durations and sterilizable/reusable solutions

Caractéristiques / spécifications techniques

• Device material: ABS
• Membrane type: tubular microfiltration
• Membrane materials: Polysulfone (some variants) and Polyethylene (other variants)
• Cut-off rating: 0.1 µm nominal / 0.2 µm absolute (sterilizing grade); some 0.2 µm tubular membranes
• Maximum operating/upstream pressure: 5 bar
• Maximum upstream temperature: 60°C (31-day variant)
• Thermal shock resistance: up to 70°C for durations depending on variant (20–30 minutes)
• Chemical shock resistance: ranges from 100 ppm active chlorine (cumulative hours vary by variant) up to 1000 ppm for 1 cumulative hour (31-day variant)
• Flow rates (examples): 3.8 L/min @1 bar / 6.0 L/min @3 bar / 6.1 L/min @5 bar (31-day); 4.6 L/min @1 bar / 7.6 L/min @3 bar / 9.4 L/min @5 bar (2–4 month filters)
• Water treated capacity examples: 6,000 L (2 months), 9,000 L (3 months), 12,000 L (4 months) — depending on water quality
• Autoclavable option: 60 cycles at 134°C — 18 min; filtration surface 900 cm²; filtration flow rate 10 L/min @3 bar
• Backflow protection: integrated non-return valve (some variants) and protective skirt/angled connection for controlled back-contamination management
• Traceability: GS-1 DataMatrix and autoclave-cycle traceability label (depending on variant)
• Regulatory: CE Class I (for specified variants)
