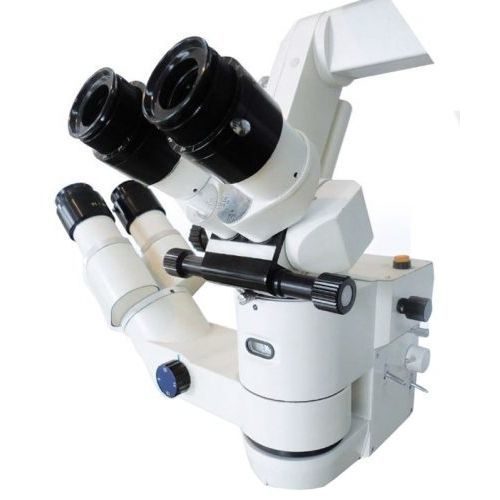

Ophthalmic surgery microscope SM-8000
on casters

ophthalmic surgery microscope
ophthalmic surgery microscope
ophthalmic surgery microscope
Add to favorites
Compare this product


Characteristics

Microscope type
ophthalmic surgery microscope
Ergonomics
on casters
Zoom

Min.: 4.6 unit

Max.: 27 unit

Description

Designed for two operators, the HAI SM-8000 Ophthalmic Surgical Microscope features premium, German optics for bright and finely balanced observation during surgical procedures. The integration of apochromatic lenses ensures optimum coaxial illumination and color correction for an exceptionally clear field of view. Specifications Eyepiece magnifications: 12.Sx /18B Objective lens: f=200 Working distance: 170mm Field diameter: 8.5-46mm Pupil distance: 45mm-80mm main, 50mm-75mm assist. Diopter adjustment : ±7D Maximum resolution: 119 LP/mm Assistant focusing range: 30mm Illumination type: 6° + coaxial ilium. 26° oblique ilium. Illumination source: 12V/100W halogen Coaxial illumation: 80,000lx, 1-9 levels Oblique illumination: 60,000lx, 1-9 levels Fine focus speed and range: 2mm/s, 50mm XV speed and range: 2mm/s, 50x50mmm
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
