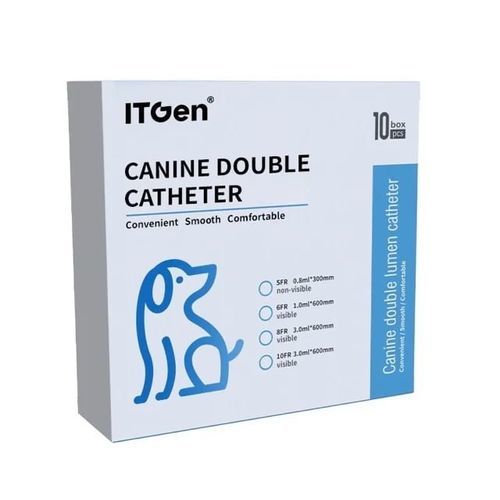

Urine drainage veterinary catheter

drainageurethralfor dogs

Product Overview
The ITGen Canine Dual‑Lumen Foley Catheter is a medical‑grade silicone catheter designed for professional canine urinary management and surgical drainage. It features a water‑activated hydrophilic coating for low‑friction insertion and an integrated metal stylet to aid navigation of the urethral curve. Select models include a radiopaque tip for imaging verification, and an elastic balloon enables sutureless intravesical fixation.

Core Advantages

• Hydrophilic Coating: Water-activated surface that becomes ultra-slick on contact with fluid to reduce insertion force and tissue irritation.
• Integrated Metal Stylet: Built-in guide wire provides rigidity and control to navigate canine urethral anatomy precisely.
• Radiopaque Tip (X-Ray Visible): Certain sizes include radiopacity to confirm placement under fluoroscopy or X-ray.
• Elastic Balloon Fixation: High-elasticity balloon secures the catheter inside the bladder without external suturing.

Product Specifications
Type | Size (Fr) | Length | Balloon Capacity | Features
Non-Radiopaque | 5Fr | 300mm | 0.8ml | Standard Use
Non-Radiopaque | 6Fr | 600mm | 1.0ml | Standard Use
Radiopaque | 8Fr | 600mm | 3.0ml | X-Ray Visible
Radiopaque | 10Fr | 600mm | 3.0ml | X-Ray Visible

Notes

• Fr definition: Fr refers to catheter circumference units; industry convention: approximate diameter = Fr/3 (example: 5Fr ≈ 1.6mm diameter).
• Packaging: 10 units per box; 10 boxes per carton.

Usage & Storage

• Application: For canine bladder/urethral surgery and urinary drainage by qualified veterinary professionals.
• Storage: Store in a cool, dry environment away from direct sunlight.
• Shelf Life: 5 years.
• Warning: Do not sterilize at high temperatures.

Certifications & Quality

• Manufactured in a CE, ISO 13485 and GMP certified facility.
• ISO 9001 quality management system; batch consistency, strict quality control and full traceability.

Technical Characteristics / Specifications

• Brand: ITGen
• Product: Canine Dual-Lumen Foley Catheter
• Material: Medical-grade silicone
• Coating: Hydrophilic (water-activated)
• Guide: Integrated metal stylet (guide wire)
• Tip options: Radiopaque tip available on selected models for X-ray visibility
• Available sizes: 5Fr, 6Fr, 8Fr, 10Fr
• Lengths: 300mm (5Fr); 600mm (6Fr, 8Fr, 10Fr)
• Balloon capacities: 0.8ml (5Fr); 1.0ml (6Fr); 3.0ml (8Fr, 10Fr)
• Packaging: 10 units per box; 10 boxes per carton
• Shelf life: 5 years
• Storage conditions: Cool, dry environment
• Sterilization warning: Do not high-temperature sterilize
• Intended use: Canine bladder/urethral surgery and urinary drainage
• Quality standards: CE, ISO 13485, GMP, ISO 9001
