Irrigation tubing

surgicalPVCABS

Short description

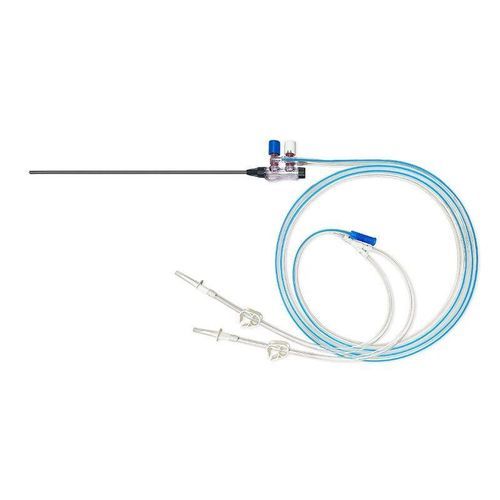

1. Item: Disposable Suction Irrigation Tube Set
2. Soft and durable tube helps prevent kinking and entanglement.
3. Easy-peel separable components facilitate surgeon handling.
4. Threaded connection enables rapid probe change.

Product information
Product Name : Disposable Suction Irrigation Tube Set
Brand : BOER
Material : PC+ABS+stainless steel (probe); PVC tube; PV for valves and T-pipe
Color : White + blue + purple
Model Number : B100105330 / B100205360 / B100305430 / B100410360
Specification : 5 × 330 mm / 360 mm / 430 mm; 10 × 360 mm
Certificate : CE / ISO13485 / FSC
Instrument classification : Class II
Application : Surgical operation (laparoscopic irrigation and suction)
Shelf Life : 3 years
OEM : Acceptable
MOQ : 20 pcs

Product introduction

• Functions and Applications: Disposable Suction Irrigation Tube Set is intended for irrigation and suction during laparoscopic surgical procedures.
• Raw Material: The stainless steel probe is made of 06Cr19Ni10. Tubing is PVC. Irrigation valve, suction valve, T-pipe and pin hat use PV materials. Pin head is ABS; other components include PC and ABS as specified.
• Main Structural Composition: Composed of irrigation valve, suction valve, stainless steel probe, probe hat, pin hat, pin head, tube clamp, connector, suction tube connector, tube, probe seat, T-pipe and rear cover.
• Description of performance: Components assemble and disassemble smoothly; moving parts operate without sticking. Connections between tube and components are secure. Under 10 N lateral force for 30 s, connections show no cracking. Set withstands 30 kPa negative pressure without collapse. Airtightness: holds 30 kPa air pressure for 15 s with no leakage at connections. Springs are elastic and reset promptly after compression. Ethylene oxide (EO) residue ≤ 10 μg/g.
• Commitment of After-sales Service: If external packaging is damaged and sterility is compromised, goods will be exchanged immediately.
• Servicing Time: For issues not involving product damage, we provide solutions within 24 hours.
• Transportation: Transportation requirements follow contract terms.
• Valid Period: Sterilization validity period is three years when stored and transported according to regulations.

Characteristics / Technical specifications

• Product type: Disposable suction irrigation tube set for laparoscopic surgery.
• Materials: PC, ABS, stainless steel (probe 06Cr19Ni10), PVC tube, PV for valves and T-pipe, ABS pin head.
• Available colors: White, blue, purple.
• Available specifications / lengths: 5 × 330 mm / 360 mm / 430 mm; 10 × 360 mm.
• Model designations: B100105330, B100205360, B100305430, B100410360.
• Components: irrigation valve, suction valve, stainless steel probe, probe hat, pin hat, pin head, tube clamp, connector, suction tube connector, tube, probe seat, T-pipe, rear cover.
• Performance: Withstands 30 kPa negative pressure without collapse; airtight at 30 kPa for 15 s; connections resist 10 N for 30 s without cracking.
• Sterilization residue: EO residues ≤ 10 μg/g.
• Instrument classification: Class II. Certificates: CE, ISO13485, FSC.
• Shelf life / sterilization valid period: 3 years.
• MOQ: 20 pcs. OEM: acceptable.
