Medical autoclave HS-1636

surgicalportablemobile

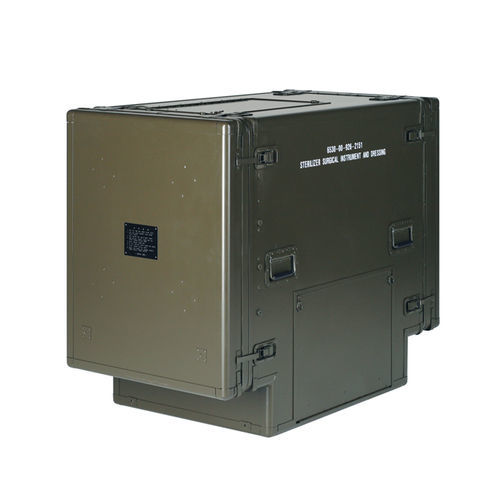

This sterilizer is an essential unit in medical institutions such as mobile surgical hospital which carries out first aid treatment in remote countryside, battle field or calamity-infected district. Cylindrical chamber and jacket compose one assembly. The door is locked tight by means of 6 radial holding arms, and the electric heater is installed in the jacket. The exterior housing consists of aluminium sheets and special light-weight wood sandwiched between them. It has two doors, one in the front and the other in the back. There is also a space for embedding gasoline burner in the lower part. The door plays the role of stand when it is flung open and becomes a container by enclosing the body tight when it is closed. Most parts are made of aluminum, and others are composed of copper or corrosion-resistant steel. Therefore, it strongly resists corrosion. It satisfied all conditions required in an emergency; perfect sterilization and drying, electrically and mechanically outstanding safety, various heating source, light weight, long durability, easy storage, stacking and transportation etc. Power Source - AC 220V 50/60 Hz, 1 ph, 45A AC 380V 50/60 Hz, 3 ph, 15A AC 220V 50/60 Hz, 3 ph, 25A AC 208V 50/60 Hz, 3 ph, 25A AC 440V 50/60 Hz, 3 ph, 15A AC 440V 50/60 Hz, 1 ph, 15A Steam Source - Electric Immersion Heater, Standard: Gasoline Burner Optional: Direct Steam Conversion Unit Net Weight - Basic Unit with Electric Heater: 135 kg, Gasoline Burner: 20 kg Direct Steam Conversion Unit: 6 kg Environment Conditions - ㆍAltitudes up to 2,000 meters. ㆍTemperature range of +5℃ to +40℃.
