Home care bed Springfield

containmentmanualpediatric

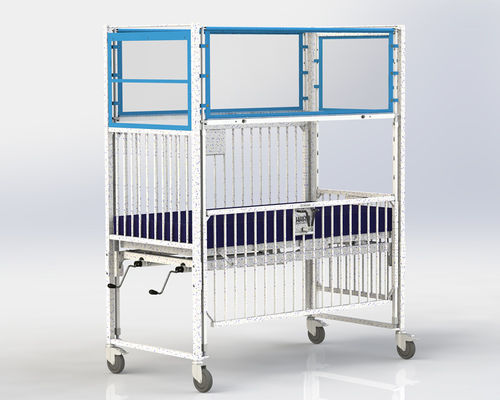

The Home Care Springfield Crib is designed for safe, practical care of active pediatric patients who may attempt to climb out of a standard crib. It provides caregiver-friendly access via raise/lower side rails and clear vinyl safety panels on all four sides to contain the child while allowing unobstructed visibility of the surroundings.

Recommended patient profile

• Active child up to 150 lb (68 kg) who may be at risk of climbing out of a regular crib.

Product highlights

• Raise/lower side rails for easy caregiver access
• Clear vinyl safety panels on all four sides for visibility and containment
• Optional vinyl top cover available for maximum containment for highly active patients

Features

• Manual head and knee elevation
• 3" foam mattress included
• Flat pan-style mattress surface
• Gatch extender for additional length
• Easy-lift side rails
• 5" heavy-duty casters (2 with brakes, 2 swivel/steer)

Options

• IV pole — up to 4
• Under-crib shelf
• 5" foam mattress (optional)
• 5" innerspring mattress (optional)
• 5" pressure-reduction mattress (optional)
• Vinyl top cover
• Additional epoxy colors available

Articulation

• Head elevation to 35°
• Thigh/foot elevation to 15°

Technical specifications

• Model #: H1943; H1955; H1975
• Crib overall dimensions (by model): H1943 – 30 x 60 in (76.2 x 152.4 cm); H1955 – 36 x 60 in (91.4 x 152.4 cm); H1975 – 36 x 72 in (91.4 x 182.9 cm)
• Mattress size (by model): H1943 – 28 x 58 x 3 in (71.1 x 147.3 x 7.6 cm); H1955 – 34 x 58 x 3 in (86.4 x 147.3 x 7.6 cm); H1975 – 34 x 70 x 3 in (86.4 x 177.8 x 7.6 cm)
• Overall crib height: 75 in (190.5 cm)
• Floor to top of platform: 29 in (73.7 cm)
• Height of sides: 45 in (114.3 cm)
• Included/available mattress types: 3" foam mattress; optional 5" foam, 5" innerspring, 5" pressure-reduction mattress
