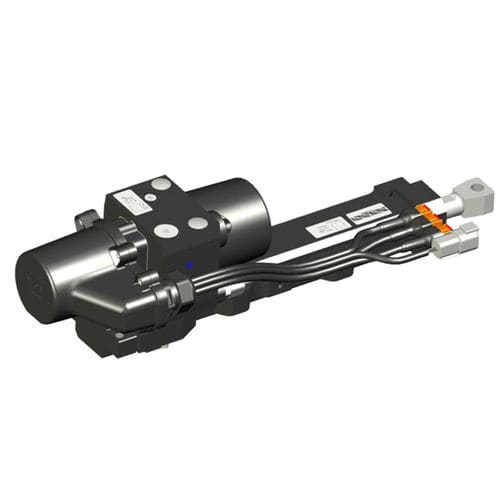

Linear actuator ResQ

hydraulicmedical

Heavy lifting is part of everyday life in emergency medical services. This can result in spinal injuries. Prevention is therefore a key concern. To further reduce the physical strain on rescue personnel when loading patients, HAWE Micro Fluid offers a hydraulic drive system for lowering/raising rescue stretchers: the ResQ-Lift. Unique selling points Plug & Play Smooth and stepless movement (for critical patient transport) Easy to use / Protection against accidental lowering High cylinder lifting capacity (suitable for heavy patients) Emergency function (movement without power) / No sagging in the event of a total power failure (patient remains securely in position) High system efficiency (more driving cycles per battery charge) Durable and sturdy Highly integrated system (lightweight, compact, enclosed, and position-independent hydraulics) Designed in accordance with the most common standards Adjustable valve block position for easier integration Low power consumption Up to 27 kN of compressive force (equivalent to a patient weight of 350 kg) Long service life Any installation orientation Available stroke 176–305 mm
