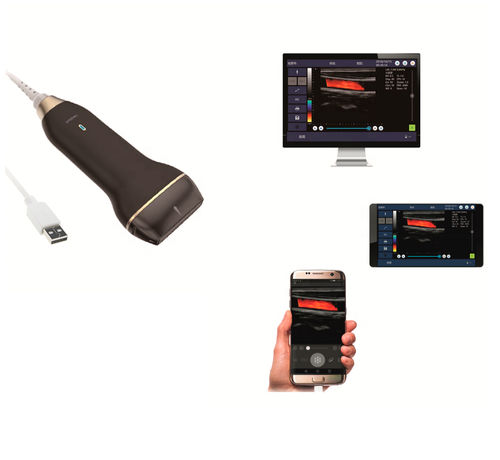

Hand-held ultrasound system C30L
for musculoskeletal ultrasound imagingfor skin ultrasound imagingfor intraoperative ultrasound imaging

hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
hand-held
Application
for musculoskeletal ultrasound imaging, for skin ultrasound imaging, for intraoperative ultrasound imaging
Imaging modes
B/W
Options
all-in-one probe
Probe type
linear-array
Probe frequency

Min.: 5 MHz

Max.: 10 MHz

7.5 MHz

Weight

0.08 kg (0.18 lb)

Length

143 mm (5.6 in)

Height

64 mm (2.5 in)

Depth

24 mm (0.9 in)

Description

Operating System and Application:Android smart phone (SAMSUNG S8, S9 HUAWEI MATE 9, MATE10, P10) / Windows tablet, computer, laptop Advantages:High resolution with color dopplor Scanning Mode:electric linear Display Mode:"B, BB, 4B, BM, M, CDFI, PDI, PW, Puncture, PICC " Gray Scale:256 Scanning Depth:2-120mm TGC:8TGC adjustments Cine Loop:512 frames Gain:0-100dB adjustable Language:English/Chinese/French/Arabic/Spanish Central Frequency:7.5MHz(5-10MHz) Probe Port:USB Type-A/ USB Type C Colors:9 Image Conversion:left/right, up/down Application:Shallow application, ultrasound-guided percutaneous drainage Small parts, such as thyroid, joint, blood vessel and so on N/W:80g Support system: Android / Windows Small and Light Low Power Consumption:B-mode is around 2.5W, C-mode is around 3W . Anti-interference, Stable Transmission Long Working Time :≥4h Can be flexibly matched with mobile phones, tablets and laptop.
