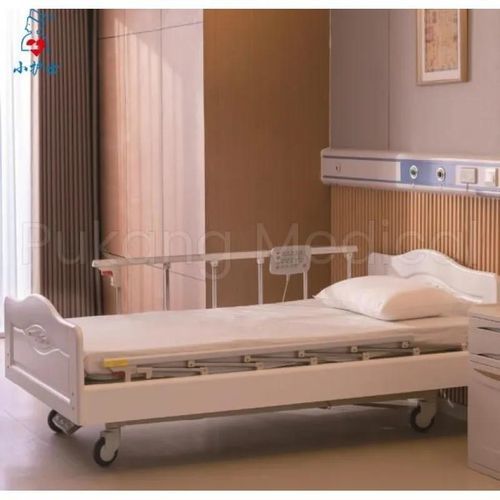

Home care bed DA-2(H3)

electricTrendelenburgreverse Trendelenburg

Description
The DA-2(H3) five-function electric home care bed is designed for home nursing and elderly care. It offers adjustable backrest, thighboard, bed height and TR/ATR tilt plus electric CPR, enabling safer patient positioning and easier daily care operations.

Features

• Backrest lift (0–70°)
• Thighrest lift (0–25°)
• Backrest and leg linkage
• Bed height adjustment (440–735 mm)
• Trendelenburg / Anti-Trendelenburg tilt (0–12°)
• Electric CPR
• One-button chair positioning
• One-button bed-exit function lock
• Battery power display
• Floor lighting
• Central brake system (central control casters)
• IV stand insertion / IV stand sockets

Standard configuration

• Motor control box (1 unit)
• Push rod motors (4 units)
• Full-function controller (1 unit)
• Handheld controller (1 unit)
• Battery (1 unit)
• Floor lamp (1 unit)
• Wooden headboard and footboard (1 set)
• Wooden sideboard (1 set)
• Aluminum alloy guardrail (1 set)
• Central control casters (4 units)
• IV stand sockets / Holes for I.V. (4 units)
• Drainage hooks (2 units)

Technical specifications

• Model: DA-2(H3)
• Dimensions: L 2060 x W 1220 x H 440–735 mm (±10 mm)
• Backrest angle: 0–70°
• Thigh board angle: 0–25°
• Trendelenburg / Anti-Trendelenburg (TR/ATR): 0–12°
• Bed height range: 440–735 mm
• Functions: 5-function electric (backrest, thighrest, bed height, TR/ATR, CPR)
• Standard accessories: motor control box, push rod motors (4), full-function controller, handheld controller, battery, floor lamp, wooden head/foot boards, wooden sideboard, aluminum guardrail, central casters, IV sockets (4), drainage hooks (2)
