Stainless steel instrument table E-38

manuel

Product Overview

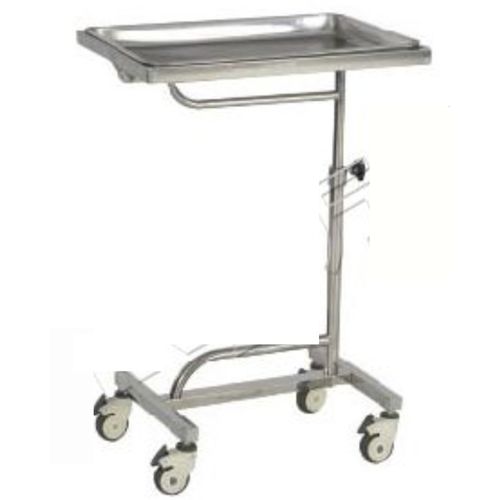

Stainless steel Mayo instrument trolley E-38 designed for operating room use, providing a height-adjustable sterile tray and stable positioning for surgical instruments and accessories.

Key Features

• Height-adjustable instrument table (adjustment range indicated: 775–1215 mm).
• Removable tray for easy cleaning and sterilization.
• Low-clearance base design to facilitate positioning close to the patient and other equipment.
• Four anti-static swivel castors for smooth movement and precise placement.
• Secure manual height lock for stable positioning during procedures.
• Load capacity up to 40 kg for instruments and accessories.
• Constructed from stainless steel for corrosion resistance and simple disinfection.
• Designed for stable, sterile performance in operating room environments.

Size
Footprint: 600 × 400 mm.
Height range: 775–1215 mm (≈77.5–121.5 cm) ±10 mm.

Applications

• Use as a Mayo/instrument trolley in operating rooms, procedure rooms and other sterile clinical environments.

Specifications

• Model: E-38
• Material: Stainless steel
• Overall footprint: 600 × 400 mm
• Height range: 775–1215 mm (≈77.5–121.5 cm) ±10 mm
• Tray: Removable
• Base: Low-clearance base
• Castors: 4 anti-static swivel castors
• Height adjustment: Manual with secure lock
• Load capacity: 40 kg
• Intended use: Operating room / sterile instrument handling
