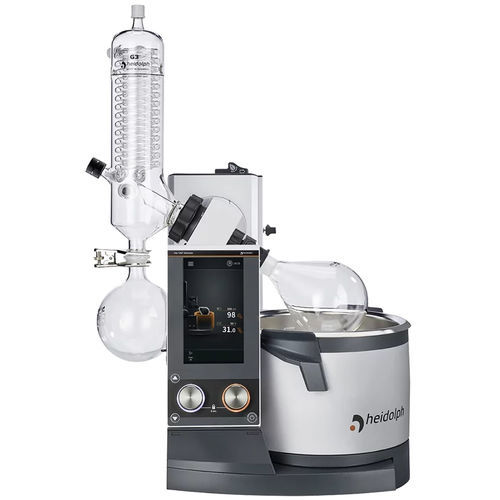

Laboratory evaporator Hei-VAP Ultimate

rotary

Precise setting of rotation speed and heating bath temperature on the digital touch display or – for quick access during an active process – directly via the knobs on the operating panel. Central operating panel with 7“ touch display Clear display of all values (Basic and Advanced modes) With timer, limitation of max. temperature, multilingual menu and text display for error messages Separate knobs for rotation and heating with locking function to prevent accidental readjusting LED ring lights and pictogram to display the activity even from a distance Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller USB and Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready) Optional display of vapor temperature Subsequent upgrade to Hei-VAP Ultimate Control possible, including vacuum and chiller control Technical Data Lift - Hand lift or Motor lift Rotation speed range - 10 - 280 rpm Rotation speed indicator - 7" LCD color graphic display Heating capacity - 1,300 W Overheat protection bath - cut-off at 5 °C over set temperature via separate PT 1000 Bath temperature setting - 7" LCD color graphic display Heating bath temperature control - electronic / digital Max. size evaporating flask - 5 l Timer - Yes Programmable ramps - Yes Condensing surface - 1,400 cm² Condensing surface XL condenser - 2,200 cm²
