Medical camera Smart U1

inspectionendoscopicsurgical

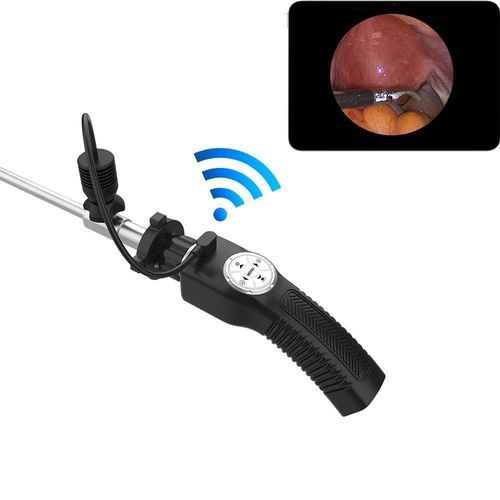

True 4K Portable Wireless Endoscope Camera System

Dajing Smart U1

The Dajing Smart U1 is a portable 4K wireless endoscope camera system designed for flexible deployment in clinical environments. It integrates ultra-high-definition imaging, wireless transmission, and a built-in LED light source into one compact handheld device.

Supporting fast setup, real-time imaging, and stable performance across multiple departments, Smart U1 provides a practical alternative to traditional wired endoscopy platforms.

Key Features

• True 4K resolution (3840 × 2160)
• Sony 1/1.8″ CMOS image sensor (IMX678)
• Built-in LED light source
• WiFi RTSP real-time transmission with low latency
• Up to three synchronised displays
• Lightweight ergonomic design (400 g)
• Replaceable battery, up to 4 hours of continuous operation
• IPX7 waterproof design

Product Overview

Smart U1 eliminates the need for external consoles and complex cabling. It connects directly to smartphones, tablets, PCs, and medical monitors via Wi-Fi, enabling real-time visualisation without physical restrictions.

Integrated LED illumination provides consistent brightness without additional light sources. The portable design supports bedside examinations, ward rounds, emergency care, outpatient consultations, and clinical teaching. Multiple imaging presets allow quick adaptation across different specialties.

Wireless Multi-Device Viewing

The system transmits 4K images via WiFi RTSP with low latency and stable signal performance suitable for clinical environments. Up to three devices can display images simultaneously, supporting collaboration between physicians, assistants, and trainees.

Long-Duration Operation

Smart U1 supports up to 4 hours of continuous operation with a replaceable lithium battery system. Batteries can be exchanged quickly to minimise workflow interruption. The IPX7 waterproof rating supports cleaning and disinfection between cases.

Technical Specifications

• Image sensor: 1/1.8″ Sony IMX678 CMOS
• Effective pixels: 3840 (H) × 2160 (V)
• Resolution: 1800 TVL
• Lens mount: C-mount
• Transmission: WiFi RTSP
• App compatibility: iOS / Android / Windows / medical monitor
• Storage: device storage or optional 64 GB TF card
• Data output: USB or app export
• Battery: built-in, replaceable Li-ion, 3.7 V, 5000 mAh
• Working time: up to 4 hours (continuous use)
• White balance: manual
• Protection level: IPX7
• Charging mode: magnetic charging
