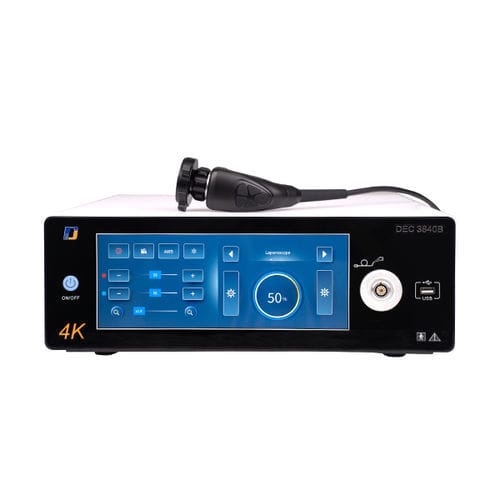

Endoscopic camera DEC 3840B

surgicaldigitalhigh-definition

4K Surgical Endoscopy Camera SystemUltra HD Imaging, Superior Clarity, Reliable Performance for Modern Operating RoomsProduct OverviewThe 4K Endoscope Camera System delivers ultra-high-definition imaging (3840×2160), offering exceptional clarity, vivid colors, and enhanced depth of field. Advanced image processing allows surgeons to observe fine anatomical structures and subtle tissue details with greater precision, improving diagnostic accuracy and surgical safety.
Widely used in General Surgery, ENT, Urology, Gynecology, and Orthopedics, the 4K system is ideal for minimally invasive procedures that demand superior visualization. From complex laparoscopic surgeries to delicate ENT and gynecological operations, it provides surgeons with a reliable imaging solution that enhances efficiency, reduces risk, and improves patient outcomes.


System ConfigurationUltra HD 4K Endoscope Camera System Tower DEC 3840B

• Camera Control Unit with 10-inch touchscreen
• LED Light Source: 90W or 120W options
• Camera Head: 4K CMOS Sensor
• 4K Monitor: 27”, 32”, or 55” options
• Medical trolley

Key Features

• Ultra HD 4K Resolution (3840×2160) for exceptionally clear and detailed images
• 10-inch Full HD touchscreen with 10 pre-set surgical modes for convenient operation
• BT.709 ultra-wide color gamut for vibrant and lifelike visuals
• Adaptive bleeding mode maintains image clarity in challenging surgical conditions
• Built-in USB storage for images and videos, with seamless software upgrade support

Camera Head Features

• Ergonomic handle for comfortable operation
• Ultra-low power consumption for extended use
• SDI coaxial transmission ensures stable and high-quality signal output
• Customizable function keys for flexible clinical control
• Auto-lock feature: handle buttons lock after 20 seconds of inactivity
• IPX7 waterproof design

LED Light Source Features

• 10-inch LCD touchscreen with intuitive interface
• Adjustable brightness (0–100 levels) for precise illumination control
• Long-lasting illumination, lamp life ≥50,000 hours
• Natural light color temperature (5700K) for true-to-life color reproduction

Technical Specifications

• Image Sensor: 1/8” Sony IMX334 CMOS Sensor
• Unit Cell Size: 2 μm × 2 μm
• Effective Pixels: 3840 (H) × 2160 (V), 60Hz
• Resolution: 1800 TVL
• Exposure: Auto / Manual
• S/N Ratio: >54 dB
• Lens Mount: C-Mount
• Illumination Reference: 3000K – 8000K
• Waterproof: Camera Head IPX7
• White Balance: Manual
• Languages: Chinese, English
• Handle Buttons: Picture, Video, White Balance
• Output Signal: 4K HDMI2.0 (3840×2160P60Hz), FHD HDMI/DVI (1080P 60Hz)
• Recording Function: Supports USB flash drive or mobile hard disk for 1080P recording

Summary of Key Advantages

• Ultra HD 4K Resolution for precise anatomical visualization
• 10-inch touchscreen with pre-set surgical modes for ease of use
• Wide color gamut & adaptive bleeding mode for enhanced surgical clarity
• Ergonomic, IPX7 waterproof camera head for safe and flexible operation
• Durable LED light source with long lamp life and natural color temperature
• Versatile output & recording options for clinical documentation and training
