Endoscopic camera DJSXJ-Ib

medicalinspectionsurgical

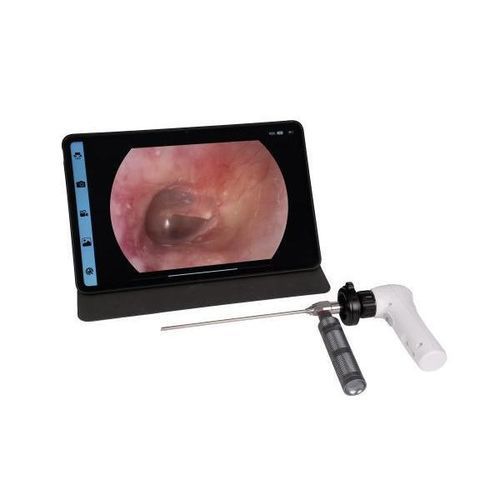

Dajing FHD Wireless Endoscope Camera System (DJSXJ-Ib)

Portable 1080p wireless endoscope camera for medical and veterinary use.

Designed for cable-free examinations and flexible clinical workflows, the DJSXJ-Ib is a portable Full HD (1080p) wireless endoscope camera system. It supports ward rounds, outpatient examinations, emergency/mobile use, and clinical teaching. Live video can be viewed on multiple devices, and images/videos can be recorded for documentation.

Key Features

• Full HD (1920 × 1080) imaging with Sony IMX322 CMOS sensor
• Wireless transmission: 2.4 GHz Wi-Fi with RTSP protocol for real-time viewing
• Multi-terminal display: supports tablets, smartphones, PCs, and external medical monitors
• Simultaneous viewing: live streaming to up to 3 devices at the same time
• Up to 4 hours continuous operation with a rechargeable, replaceable Li-ion battery
• Smart power saving: auto shut-off after 10 minutes of inactivity
• Integrated handle controls: photo capture, video recording, and manual white balance
• Optional documentation workflow: wireless workstation software for report creation and network printing
• Universal compatibility: C-mount interface for compatible endoscopes

Applications

General endoscopy, ENT, hysteroscopy, arthroscopy, clinical teaching, veterinary examinations.

Technical Specifications

• Model: DJSXJ-Ib
• Image sensor: 1/2.9" Sony IMX322 CMOS
• Unit cell size: 2.8 µm × 2.8 µm
• Effective pixels: 1920(H) × 1080(V)
• Resolution: 800 TVL
• Lens mount: C-mount
• Transmission: Wi-Fi RTSP
• Supported systems: iOS / Android / Windows
• Storage mode: device storage or optional built-in 64 GB high-speed TF card
• Data access: USB export or in-app viewing
• Battery: rechargeable & replaceable Li-ion, DC 3.7 V, 3400 mAh
• Working time: up to 4 hours (continuous use)
• Power saving: auto shut-off after 10 minutes inactive
• White balance: manual
• Language: Chinese / English
• Handle buttons: Power / Picture / Video / White balance
• Charging mode: magnetic charging
