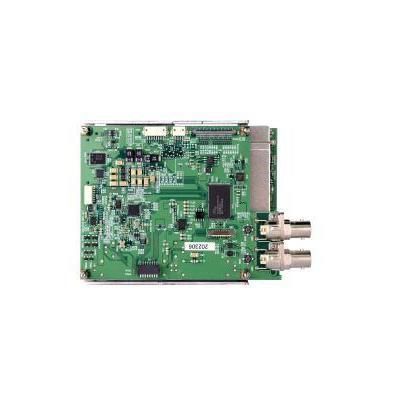

Endoscope camera controller DEC F3840

surgicaldigitalHD

The 4K Fluorescence Endoscope Camera CCU is a 4K Ultra HD camera control unit for fluorescence (ICG) imaging in endoscopy and surgical environments. Offered as an OEM/ODM module by Dajing Medical, it supports high-resolution image processing, multi-format outputs and integration-ready interfaces for medical device manufacturers.

Key features

• High-definition fluorescence imaging optimized for endoscopy and surgical ICG applications.
• Integrated Full HD touchscreen with multiple pre-set surgical modes for streamlined workflow.
• Wide color gamut and adaptive bleeding mode for improved visual clarity in challenging operative fields.
• OEM/ODM integration ready: stable digital transmission, multi-format output and recording support.
• Ergonomic handle with configurable function keys and auto-lock for secure operation.

Applications

• Endoscopy and minimally invasive surgery requiring ICG/fluorescence imaging.
• Integration into medical imaging systems and surgical camera platforms (OEM/ODM).

Technical specifications

• Image sensor: 1/3” CMOS ×4, 4K sensor
• Unit cell size: 2 µm × 2 µm
• Effective pixels: 3840 (H) × 2160 (V), 60 Hz
• Resolution: 1800 TVL
• Exposure: Auto / Manual
• S/N (Signal-to-Noise): >54 dB
• Lens mount: C-Mount
• Illumination reference: 3000 K – 8000 K
• Waterproof: Camera head rated IPX7
• White balance: Manual
• Interface languages: Chinese, English
• Handle button functions: Picture, Video, White balance
• Output signal: 4K — HDMI 2.0 (3840×2160p60 Hz); 12G‑SDI or 3G‑SDI ×4; FHD — HDMI, DVI (1080p 60 Hz), 3G‑SDI
• Recording: Supports USB flash drive or external HDD for 1080p recording
