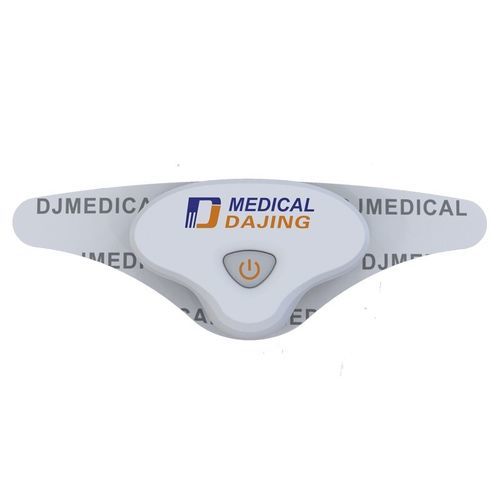

Transcutaneous neurostimulator DJTT-lb

for supraorbital nerve stimuulationtrigeminal nerve stimulationwireless programmable

Product overview

• Designed for symptomatic relief of migraine-related pain
• Non-invasive physical therapy using TENS
• Stimulates endogenous endorphin release
• Helps reduce stress and promote relaxation
• May support improved sleep patterns
• App-controlled with Bluetooth connectivity
• Portable and lightweight for ambulatory use
• User-friendly operation

Product description
Transcutaneous electrical nerve stimulation (TENS) is a non-invasive neuromodulation technique used to manage pain. The device generates a balanced bidirectional waveform with an adjustable frequency range (typically 1–150 Hz) and pulse width (0.04–0.5 ms). A microcontroller regulates the boost and stimulation circuits to deliver prescribed waveforms to self-adhesive electrode pads placed on the skin, producing targeted electrical stimulation to the treatment area.

Many migraine attacks involve activation of branches of the trigeminal nerve. When self-adhesive electrodes are applied to the forehead, the device delivers low‑intensity electrical pulses to trigeminal branches (for example the supraorbital nerve), which can reduce the frequency and intensity of migraine episodes. Clinical reports indicate that TENS may abort migraine attacks within 60 minutes and that daily preventive use (20 minutes per day for 60 days) can reduce attack frequency and severity.

Product Description (table)
Battery : Built-in li-ion DC3.7V 100mAh
Charging connector : Micro USB
Working times : Continuous treatment 5 times
Electrode inspection : Electrode shedding automatically stop working
Gel paste: It can be used more than 30 times
Charging requirement: DC5V 2A
App function : Start/stop, treatment mode selection
Communication mode: Bluetooth 5.0 communication
APP language: Chinese, English
Safety type : Class I BF type
Operating temperature : 0℃-40℃

Technical specifications

• Battery: Built-in li‑ion DC 3.7V 100mAh
• Charging connector: Micro USB
• Working times: Continuous treatment up to 5 sessions per charge
• Electrode inspection: Automatic shutdown if electrode detachment detected
• Gel paste: Reusable for more than 30 applications
• Charging requirement: DC 5V 2A
• App function: Start/stop and treatment mode selection
• Communication mode: Bluetooth 5.0
• APP language: Chinese and English
• Safety classification: Class I BF type
• Operating temperature range: 0℃ to 40℃
