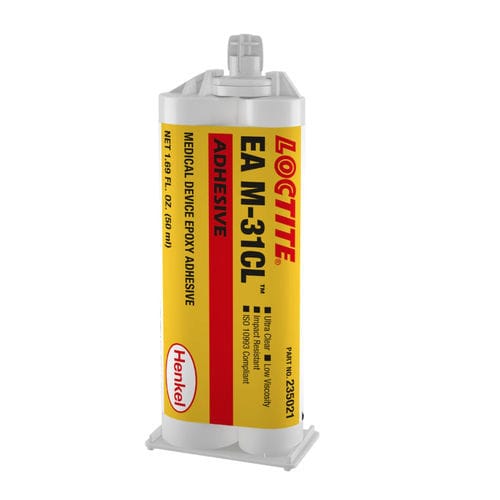

Epoxy resin medical assembly adhesive LOCTITE® EA M-31CL

for medical devicesfor fiberglassfor metal

LOCTITE® EA M-31 CL is a 2-part, clear, colourless to slightly yellow, low-viscosity liquid epoxy adhesive cures at room temperature and forms an ultra-clear adhesive bond line with excellent impact resistance and minimal shrinkage. It can be used for a wide range of applications, including bonding, small potting, staking and laminating applications. ISO 10993 approved for use in the medical industry. - Approved for use in the medical industry - Cures at room temperature - Resistant to a wide range of chemicals and solvents - Bonds most materials Technical Specification: - Applications: Structural bonding - FEA (finite element analysis): Finite strain, Viscoelastic - Fixture time: 160.0 min. - Mix ratio, by volume: 2 : 1 - Shear strength: 21.4 N/mm² - Work life: 30.0 min. - Colour, Mixed: Ultra clear - Specific gravity, Mixed @ 25.0 °C: 1.07 - Colour, Resin: Clear - Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 6, speed 20 rpm: 9000.0 - 12000.0 mPa·s (cP) - Colour, Hardener: Clear - Viscosity, Brookfield - RVT, Hardener @ 25.0 °C Spindle 5, speed 20 rpm: 1500.0 - 9000.0 mPa·s (cP)
