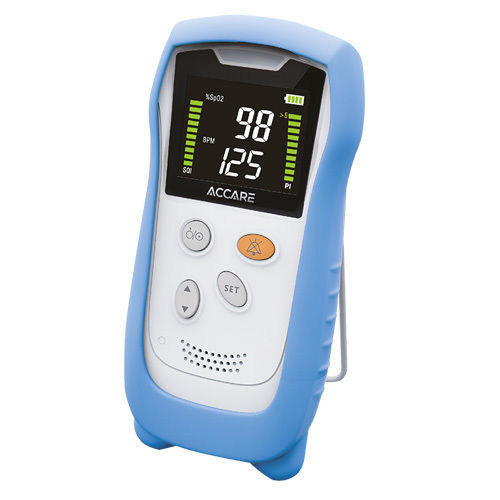

Compact pulse oximeter HS10A

hand-heldmedicalhome care

Product overview

• HS10A handheld pulse oximeter
• Intended use: adults, pediatrics and neonates
• 2.4″ color LCD display
• Includes reusable SpO2 soft sensor (adult)
• Includes silicone protective case
• Clinical use: hospitals, emergency, physician offices
• Measured parameters: oxygen saturation (SpO2) and pulse rate
• Sensor connector: Nellcor© type with 7 PIN
• Values displayed in approx. 5 seconds
• LCD shows numeric SpO2, pulse rate, perfusion index (PI) and signal quality index
• Accurate oximetry under motion and low perfusion
• Pitch-tone technology; compact, lightweight and durable
• Monitoring and spot-check modes (two working modes)
• Adjustable audible and visual alarm thresholds
• Power: compatible with lithium battery and AA alkaline
• Dimensions: 72 x 142 x 32 mm
• Net weight: <500 g complete with batteries and case
• Color: blue

Additional information

• Single-button operation for fast measurements
• Compact, lightweight design for mobile use
• High-contrast display for quick reading
• Suitable for home use and clinical environments; also for athletes and patients with respiratory conditions
• Battery life: approx. 30 hours continuous use with new batteries at 25 °C

Model (excerpt from table)
Product number | Product name | Color
950001 | HERZmed Handheld pulse oximeter HS10A | white/blue
950002 | HERZmed Silicone protective case HS10A | blue


Characteristics / Technical specifications

• Model name: HS10A
• Display: 2.4″ color LCD
• Measured parameters: SpO2, pulse rate, perfusion index (PI), signal quality index
• Sensor: reusable SpO2 soft sensor (adult) included; sensor connector Nellcor© type (7 PIN)
• Time to display: approx. 5 seconds
• Working modes: monitoring and spot-check
• Audio: pitch-tone technology, adjustable audible threshold
• Power supply: compatible with lithium battery and AA alkaline
• Battery life: approx. 30 hours continuous use (at 25 °C, new batteries)
• Dimensions: 72 x 142 x 32 mm
• Net weight: <500 g (complete with batteries and protective case)
• Applications: adults, pediatrics, neonates; hospital, emergency, physician offices, home use
• Housing color: blue
• Delivery contents: device, reusable SpO2 soft sensor, silicone protective case
