Catheter box 21 series

storageplasticaluminum

Product overview

• Transparent closure lid with 125° opening angle
• Manufactured according to hygiene requirements for sterile supply (DIN58953-8:2019-3)
• Lightweight, powder-coated aluminium construction
• Flexible mounting options (wall, standard rail)
• Compartments for short and long catheters (removable for cleaning)
• MRI-compatible
• Colour: white aluminium (RAL 9006); special colours available on request
• Dimensions standard: W x D x H 100 x 120 x 703 mm
• Dimensions long: W x D x H 100 x 120 x 1052 mm
• Weight: 2.2 kg (standard) / 3.85 kg (long)
• Made in Germany

Product description

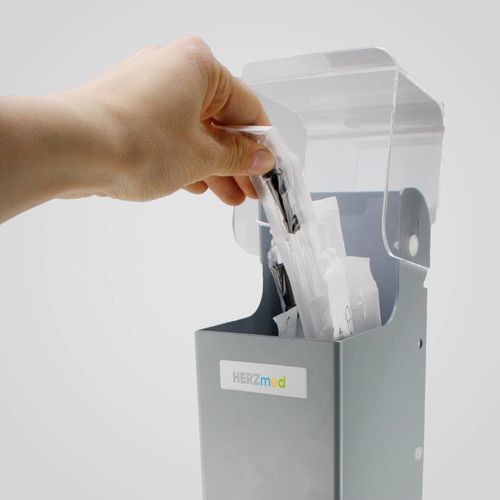

The transparent lid opens up to 125° to allow quick and hygienic product removal. The holder can be mounted on a standard rail using the supplied rail bracket or fixed to the wall with an optional wall bracket. Additional spacers in two lengths are available to ensure optimal stability. The supplied partition plate with two height dividers enables storage of different catheter lengths within one unit.
The sealed, stable body protects contents from dust, dirt, excessive light and mechanical damage. Smooth, powder-coated surfaces and a dry, sealed interior allow thorough hygienic cleaning. This design makes the holder suitable for hospitals, clinics, medical practices and care facilities.

Colour
Supplied in white aluminium (RAL 9006). Other colours available on request according to RAL codes.

Material

• Lid: PETG (glycol-modified polyethylene terephthalate)
• Body & components: powder-coated aluminium
• Conical clip: PA66 plastic

Models (product numbers)
Product number | Product name | Dimensions | Weight
217020 | HERZmed Katheter holder, fully assembled | 100 x 120 x 703 mm | 2.2 kg
218000 | HERZmed Katheter holder, fully assembled | 100 x 120 x 1052 mm | 3.85 kg

Accessories (included)

• Partition plate
• Height dividers, insert floor for height separation, incl. 2 conical clips
• Transparent lid
• Standard rail bracket, incl. 2 conical clips
• Spacer – long, 55 mm wall support for rail bracket, incl. 2 conical clips
• Spacer – short, 30 mm wall support for rail bracket, incl. 2 conical clips
• Wall bracket VESA 75 mounting, incl. 4 conical clips and 4 screws M5
• Conical clips

Questions & Answers (excerpt)
Can different catheters be stored? Yes, the flexible partition plate allows storage of catheters with different lengths.
Is the holder sealable? Yes, it can be sealed. There is an eyelet on the lid and body for a seal.

Characteristics / Technical specifications

• Manufacturer / Brand: HERZmed
• Model name: HERZmed Katheter holder
• Conformity / Standard: manufactured according to DIN58953-8:2019-3 (hygiene requirements for sterile supply)
• Lid opening angle: 125°
• Lid material: PETG (glycol-modified PET)
• Body material: powder-coated aluminium
• Clip material: PA66 (conical clip)
• Mounting: standard rail bracket, optional wall bracket, other mounting options on request
• Colour: white aluminium (RAL 9006), special colours on request
• Dimensions standard: 100 x 120 x 703 mm
• Dimensions long: 100 x 120 x 1052 mm
• Weight standard: 2.2 kg
• Weight long: 3.85 kg
• MRI-compatible
• Scope of delivery: partition plate, height dividers, transparent lid, standard rail bracket, spacers (long/short), wall bracket VESA 75 (incl. mounting material), conical clips
• Spare parts available individually on request
