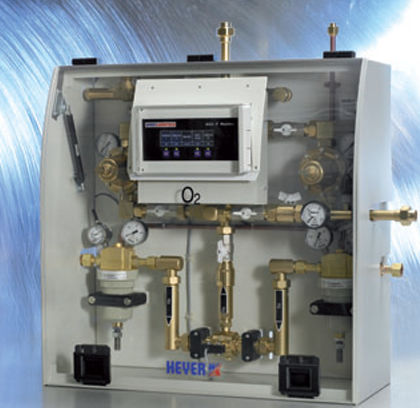

Medical gas pressure reducer station 538-3101

medical gas pressure reducer station
medical gas pressure reducer station
Add to favorites
Compare this product


Characteristics

Fluid type
medical gas
Height

750 mm
(29.5 in)

Weight

60 kg
(132.3 lb)

Width

765 mm
(30.1 in)

Depth

305 mm
(12 in)

Description

■ Changeover unit for regulation, supervision and control of medical and technical gas supply units ■ With pneumatically-controlled changeover ■ All pneumatic components mounted on a board and protected by means of a plostic cover with door ■ Pressures readable from outside ■ AGS Pmonitor with an innovative glass display for indication of the current Status of the unit and for eleclronic supervision of the medical gas supply ■ Operation by means of touch keys ■ Possibility ofpassing Information on to an external communication/ indication system by means of potential-free contacts ■ Communication of several Medium Monitors possible via bus system ■ Digital pressure indication optional ■ Flow measurement optional
