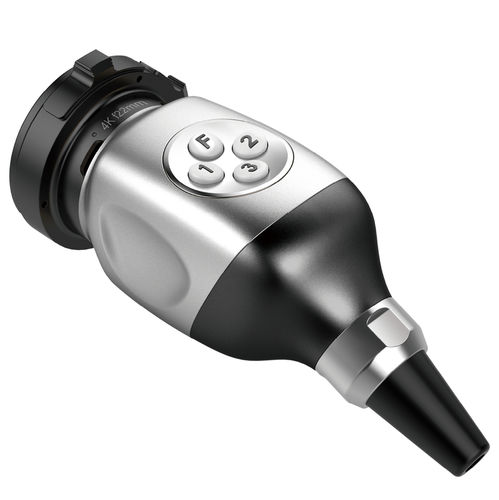

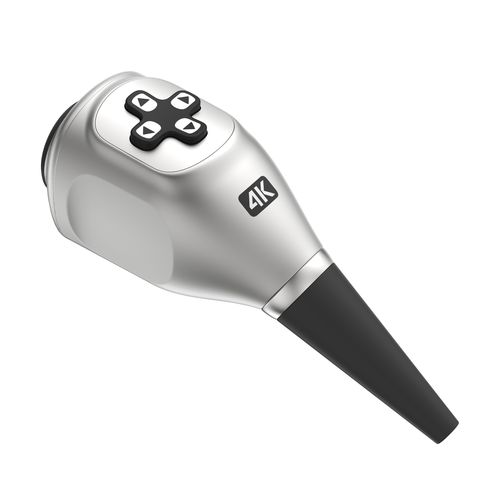

Endoscopic camera head MIK-C32 Series

digital3840 x 21604K

Overview
MIK-C32 Series 4K endoscopic camera designed for minimally invasive surgery. Integrates an Exmor back-illuminated 4K sensor (3840×2160, 8.29 MP) into an ultra-light, low-temperature compatible housing. Supports immersion and low-temperature plasma disinfection. IPX8 rating and 3 m cable facilitate sterile-field workflows; weight ≤160 g for ergonomic handling.

Key features

• Resolution: 3840×2160 (8.29 MP)
• Sensor: Exmor back-illuminated 4K sensor
• Focus modes: Auto Focus, Manual Focus
• One-click auto focus (optional), typical response ≤0.5 s
• Programmable shortcut keys (including function key)
• Ingress protection: IPX8 — immersion compatible
• Supports immersion and low-temperature plasma disinfection
• Ultra-light design, weight ≤160 g
• Cable length: 3 m

Technical specifications

• Model family: MIK-C32 / C32X
• Image sensor: Exmor back-illuminated 4K
• Maximum resolution: 3840 × 2160 (8.29 MP)
• Focus: Auto Focus, Manual Focus
• Optional: One-click auto focus
• Ingress protection: IPX8
• Design: Ultra-light, low-temperature compatible
• Disinfection support: Immersion and low-temperature plasma
• Cable length: 3 m
• Weight: ≤160 g

Intended applications

• Endoscopy for minimally invasive surgery — 4K imaging solution for operating rooms and endoscopy suites
