Endoscopy monitor

operating roomfor teachinglaparoscopy

Overview

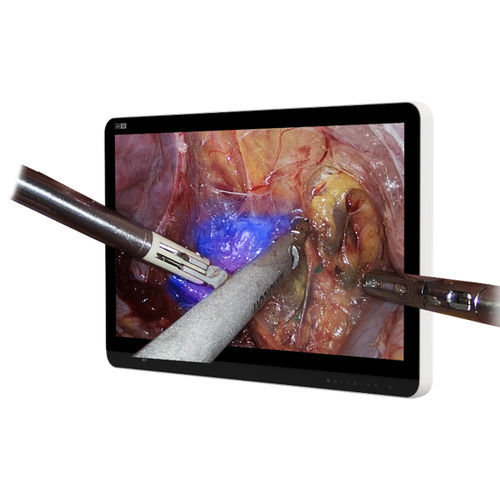

31.5-inch surgical monitor with native 3840×2160 (4K UHD) resolution and multi-format 3D support for intraoperative imaging.

Key features

• Native resolution: 3840×2160 (4K UHD)
• Supports multiple 3D formats: Side by Side, Line by Line, Top and Bottom, SIMUL
• 3D parallax adjustment supported
• Maximum brightness: 850 cd/m²
• Color gamut: 94% NTSC
• Signal inputs: 12G‑SDI, 4 × 3G‑SDI, HDMI and others
• Front panel protective cover for straightforward cleaning and disinfection
• Complies with EMC test standards for medical devices
• Professional power adapter meeting medical regulations

Technical specifications

• Screen size: 31.5 inch
• Native resolution: 3840 × 2160 (4K UHD)
• 3D formats: Side by Side, Line by Line, Top and Bottom, SIMUL
• 3D parallax adjustment: supported
• Maximum brightness: 850 cd/m²
• Color gamut: 94% NTSC
• Signal inputs: 12G‑SDI, 4 × 3G‑SDI, HDMI, other inputs
• Front panel: protective cover for cleaning and disinfection
• Compliance: conforms to EMC test standards for medical devices
• Power: professional medical-regulation power adapter

Clinical applications

• Designed for use in operating rooms and interventional suites
• Suitable for laparoscopic and endoscopic 3D visualization
• Applicable to microsurgery, ENT, neurosurgery and other image-guided procedures
• Use for intraoperative review, training and documentation

Maintenance & compliance

• Front panel protective cover enables cleaning and surface disinfection according to hospital protocols
• Device conforms to EMC test standards applicable to medical equipment
• Use only power supplies and accessories that meet medical regulatory requirements
