Operating room display

medical imagingendoscopymedical

Overview

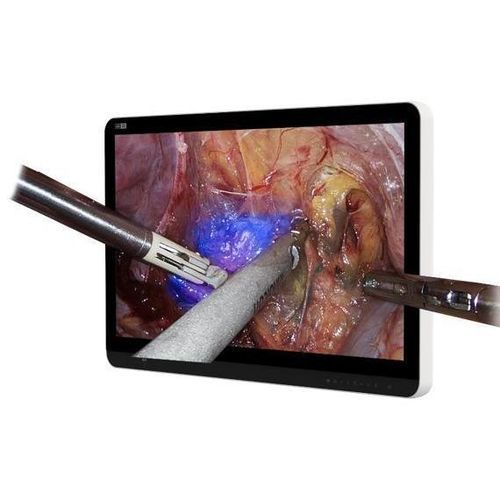

31.5-inch medical monitor designed for surgical 4K 3D imaging, suitable for operating rooms and integration with endoscopic and surgical video systems.

Key features

• Resolution: 3840×2160 pixels (4K) for detailed visualization
• Supports multiple 3D formats: Side by Side, Line by Line, Top and Bottom, SIMUL
• 3D parallax adjustment supported for depth tuning
• Maximum brightness: 850 cd/m² to ensure visibility under surgical lighting
• Color gamut coverage: reaches 94% NTSC for accurate color reproduction

Inputs and compatibility

• Supports 12G-SDI, 4×3G-SDI, HDMI and other signal inputs for integration with surgical imaging equipment

Design and medical compliance

• Front panel protective cover for easy cleaning and disinfection
• Complies with EMC test standards for medical devices
• Equipped with a professional power adapter compliant with medical regulations

Technical specifications

• Display size: 31.5 inch (medical monitor)
• Resolution: 3840×2160 (4K)
• 3D formats supported: Side by Side; Line by Line; Top and Bottom; SIMUL
• 3D parallax adjustment: supported
• Maximum brightness: 850 cd/m²
• Color gamut: 94% NTSC
• Signal inputs: 12G-SDI, 4×3G-SDI, HDMI, others
• Front panel: protective cover for cleaning and disinfection
• Compliance: conforms to EMC test standards for medical devices
• Power: professional medical-regulation power adapter
