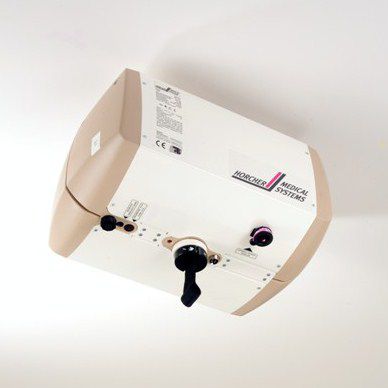

UDL 160 F Ceiling lift with drive motor and charging station 500
Ceiling lift with four functions (lifting and lowering, forwards and backwards)
(Stationary battery charger with selectable position)
Lifting capacity up to 600 pounds (lbs.)
Built-in 24 Volt / 7.2 Ah battery pack
Electric emergency down function and additional mechanical lowering device
Charging station 500 and spreader bar
Separate charging device
4-point loop suspension
The individual solution for more independence, designed for safe patient lifting
The UNILIFT ceiling lift series offers nearly unlimited options and has been used successfully worldwide for years. The UNILIFT system consists of various rails, curves, and transverses. It is mounted permanently on the ceiling or wall, to individually fit the dimensions of any room. The components of the system are expandable and match up perfectly.
Adjustable switches on the ceiling rails enable patients to move to different rooms on one floor using the lift. These systems have been thoroughly designed, and represent the state-of-the-art in safety technology. Thus, persons with walking impairments can use the lift and the electric motor to move from the bed to the bath or toilet without any problem.
In addition, UNILIFT eliminates the need for the uncomfortable transfer that is often only possible with assistance of others by means of different lift systems.
Features at a glance
Can be used in wet or dry areas;
Ground clearance by ceiling or wall mount;
Easy, smooth and safe transport;
Individually expandable, numerous components available;
2, 4, 6 oder 8 functions by hand control;
